SSCDDRD015PDAA5
SENSOR 15PSID 0.08"" 4.5V 8DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

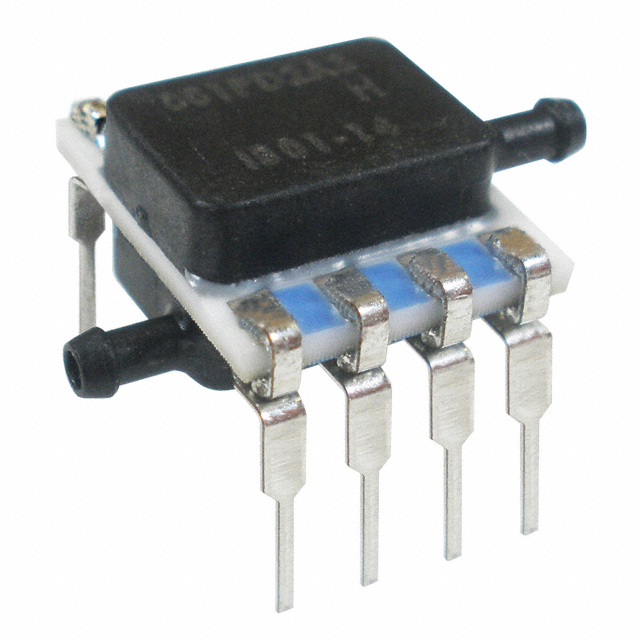

Honeywell Sensing and Productivity Solutions TruStability® SSC SSCDDRD015PDAA5 is a differential pressure sensor designed for board mounting applications. This component offers a ±15 PSI (±103.42 kPa) operating pressure range with a ±0.25% accuracy. The sensor features an amplified, temperature-compensated analog voltage output ranging from 0.5 V to 4.5 V, requiring a supply voltage of 4.75 V to 5.25 V. It is housed in an 8-DIP package with dual, barbed male ports, each accommodating a 0.08" (1.93mm) tube, positioned on opposite sides. The SSCDDRD015PDAA5 is suitable for operation across a wide temperature range of -40°C to 85°C. This sensor is utilized in various industries including aerospace, industrial automation, and medical instrumentation.
Additional Information
Series: TruStability® SSCRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm), Dual Ports, Opposite Sides |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | ±15PSI (±103.42kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.08"" (1.93mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbed |
| Maximum Pressure | ±60PSI (±413.69kPa) |
