SCX30DN
SENSOR 30PSID 0.19"" .09VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SCX series differential pressure sensor, part number SCX30DN. This electronic component features a 30 PSI (206.84kPa) operating pressure range with a maximum pressure of 60 PSI (413.69kPa). It offers a differential pressure measurement with dual 0.19"" (4.8mm) barbed male ports. The output is a Wheatstone bridge, providing a 0 mV to 90 mV signal across a 12V supply voltage, with a recommended supply voltage of up to 20V. Designed for through-hole mounting, this sensor comes in a 6-SIP module package and is temperature compensated with ±1% accuracy. Operating temperature range is -40°C to 85°C. Typical applications include board mount solutions within the industrial automation and HVAC sectors.
Additional Information
Series: SCXRoHS Status: Request inventory verificationManufacturer Lead Time: 38 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 6-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 90 mV (12V) |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Differential |
| Accuracy | ±1% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 20V |
| Port Size | Male - 0.19"" (4.8mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 60PSI (413.69kPa) |
Request a Quote
Clients Also Buy
SCX01DN
SENSOR 1PSID 0.19"" .018V
SCX01DNC
SENSOR 1PSID 0.19"" .018V 6SIP

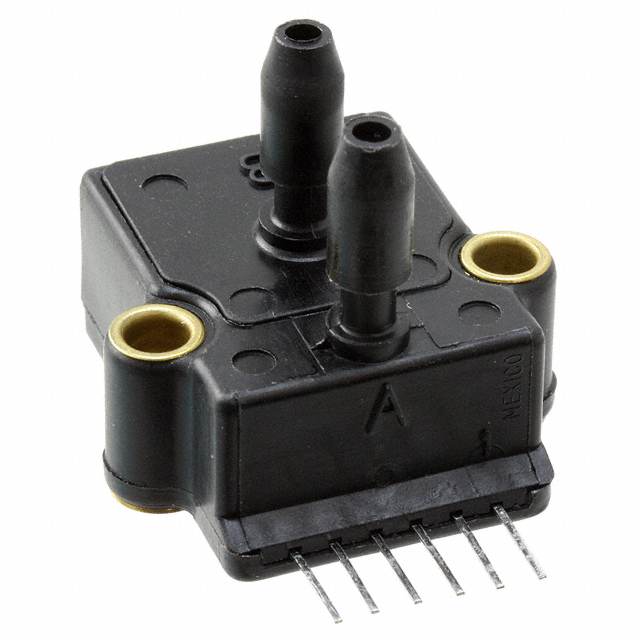

SCX05DN
