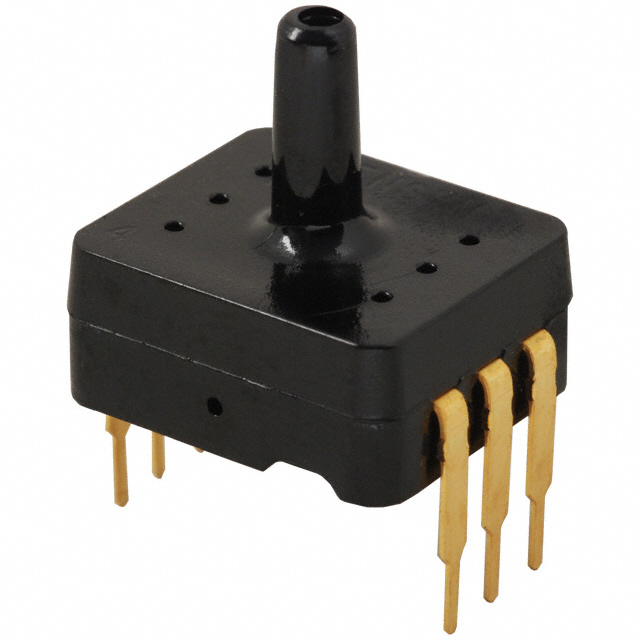

SCC15GD2
SENSOR 15PSIG 0.11"" .095VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SCC series SCC15GD2 pressure sensor offers precise measurement for demanding applications. This vented gauge sensor operates at 15 PSI (103.42kPa) with a maximum pressure rating of 30 PSI (206.84kPa). Featuring a 0.11-inch (2.67mm) male tube port with a barbless style, it is designed for through-hole mounting and terminates with PC pins. The sensor utilizes a Wheatstone bridge output, providing a mV output range of 40 mV to 95 mV. Its 6-DIP module package houses temperature compensation for enhanced performance across its -40°C to 85°C operating temperature range. With an accuracy of ±0.5%, this component is well-suited for board mount applications in various industrial and control systems.
Additional Information
Series: SCCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 6-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 40 mV ~ 95 mV |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.11"" (2.67mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 30PSI (206.84kPa) |
