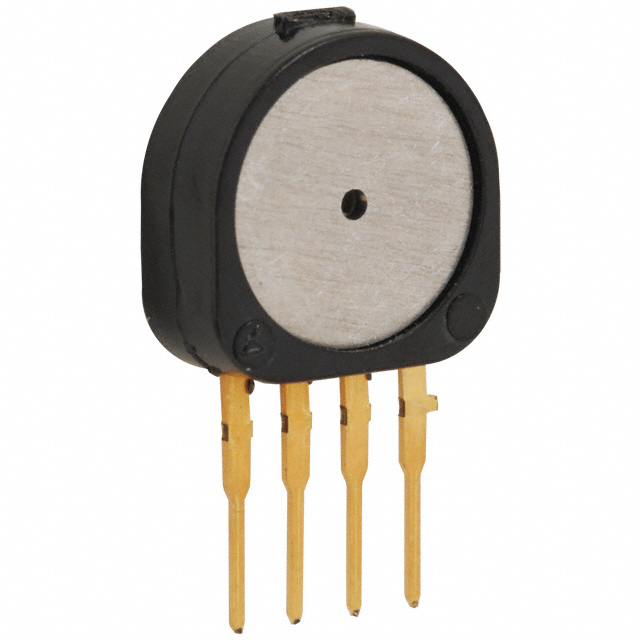

SCC15D
SENSOR 15PSID .095VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The Honeywell Sensing and Productivity Solutions SCC series SCC15D is a differential pressure sensor designed for precise pressure measurement. This 4-SIP module offers a 15 PSI (103.42kPa) operating pressure range with a typical output of 40 mV to 95 mV, derived from its Wheatstone bridge configuration. Engineered with temperature compensation and a ±0.5% accuracy rating, the SCC15D is suitable for demanding applications. Its through-hole mounting and PC pin termination facilitate integration into board-mount designs. The sensor operates across a temperature range of -40°C to 85°C and features a maximum pressure rating of 30 PSI (206.84kPa). This component finds utility in various industrial automation and control systems.
Additional Information
Series: SCCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 40 mV ~ 95 mV |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 30PSI (206.84kPa) |
