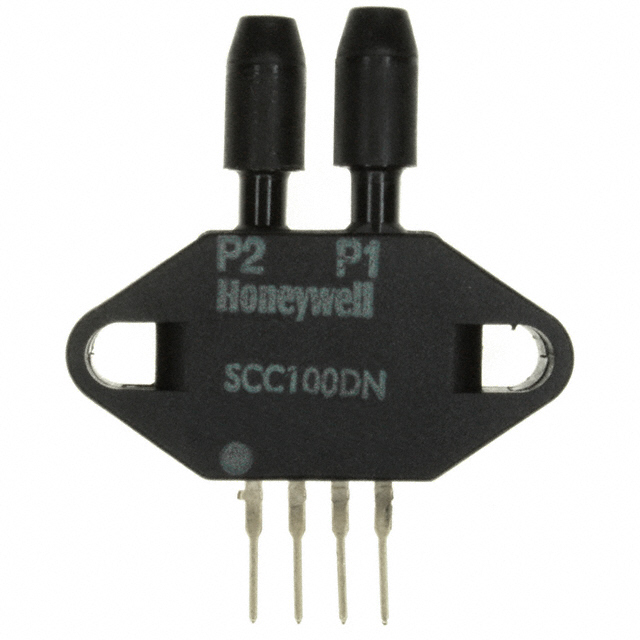

SCC100DN
SENSOR 100PSID 0.19"" .225VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions SCC Series SCC100DN is a differential pressure sensor designed for board-mount applications. This component offers a 100 PSI (689.48 kPa) operating pressure range with a maximum pressure rating of 150 PSI (1034.21 kPa). The sensor utilizes a Wheatstone bridge output, providing a voltage range of 85 mV to 225 mV. Featuring temperature compensation and ±0.5% accuracy, it is suitable for operation across a wide temperature spectrum from -40°C to 85°C. The SCC100DN employs a through-hole mounting type and a 5-DIP module package with PC pin termination. Its dual, barbed port configuration is designed for a 0.19" (4.8mm) tube size. This sensor finds application in industries such as industrial automation and HVAC systems.
Additional Information
Series: SCCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 5-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 85 mV ~ 225 mV |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.19"" (4.8mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 150PSI (1034.21kPa) |
