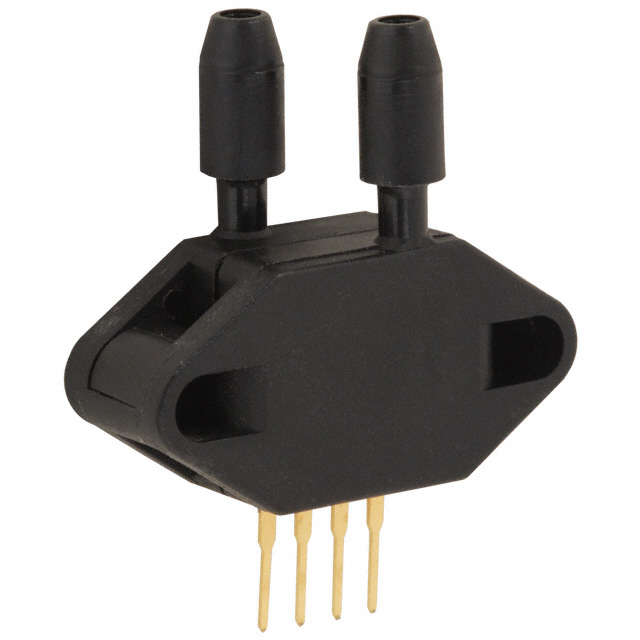

SCC05DN
SENSOR 5PSID 0.19"" .065VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The Honeywell Sensing and Productivity Solutions SCC Series SCC05DN is a differential pressure sensor designed for precise measurement in demanding applications. This 4-SIP module features a 0.19-inch barbed port for dual connections and a Wheatstone bridge output, providing a mV signal ranging from 25 mV to 65 mV across its operating pressure of 5 PSI (34.47kPa). Engineered with temperature compensation and ±0.5% accuracy, it ensures reliable performance across an operating temperature range of -40°C to 85°C. The SCC05DN is suitable for board mount applications and offers a maximum pressure rating of 20 PSI (137.9kPa). Industries such as industrial automation and HVAC control commonly utilize this component for its robust differential pressure sensing capabilities.
Additional Information
Series: SCCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 25 mV ~ 65 mV |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Port Size | Male - 0.19"" (4.8mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 20PSI (137.9kPa) |
