RSCMJJM005NDSE3
SENSOR 0.18PSID 0.08"" 24BIT SMDManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

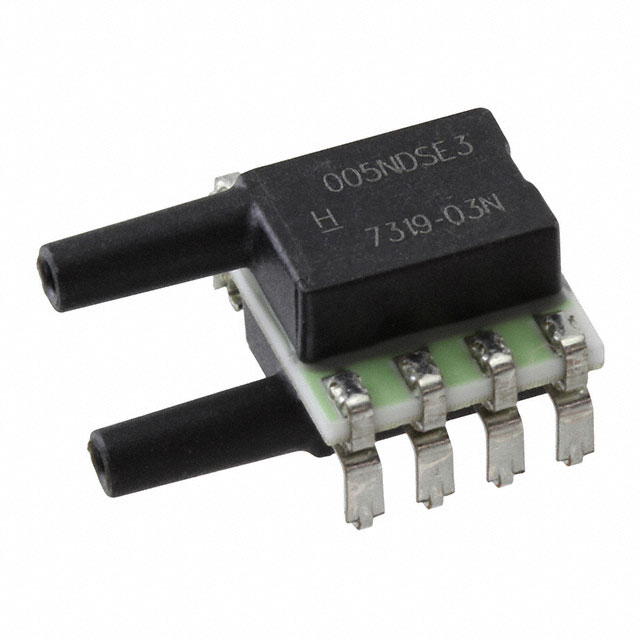

Honeywell Sensing and Productivity Solutions TruStability® RSC series differential pressure sensor, part number RSCMJJM005NDSE3. This 8-SMD, J-Lead component features dual ports, same side configuration with barbed male tube connections for 0.08" (1.93mm) tubing. It offers a precise ±0.18 PSI (±1.25 kPa) operating pressure range with an exceptional ±0.1% accuracy. The sensor provides a 24-bit digital output via SPI, operating from a 3V to 3.6V supply. Designed for board mount applications, it is temperature compensated and suitable for operation across a -40°C to 85°C temperature range. Maximum pressure rating is ±5 PSI (±34.47 kPa). This component is utilized in various industrial, medical, and HVAC systems requiring highly accurate differential pressure monitoring.
Additional Information
Series: TruStability® RSCRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-SMD, J-Lead, Dual Ports, Same Side |
| Output Type | SPI |
| Mounting Type | Surface Mount |
| Output | 24 b |
| Operating Pressure | ±0.18PSI (±1.25kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | J Lead |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.08"" (1.93mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | SMD |
| Port Style | Barbed |
| Maximum Pressure | ±5PSI (±34.47kPa) |
