NSCSRRN004BGUNV
SENSOR 58.02PSIG 0.08"" 0.1V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

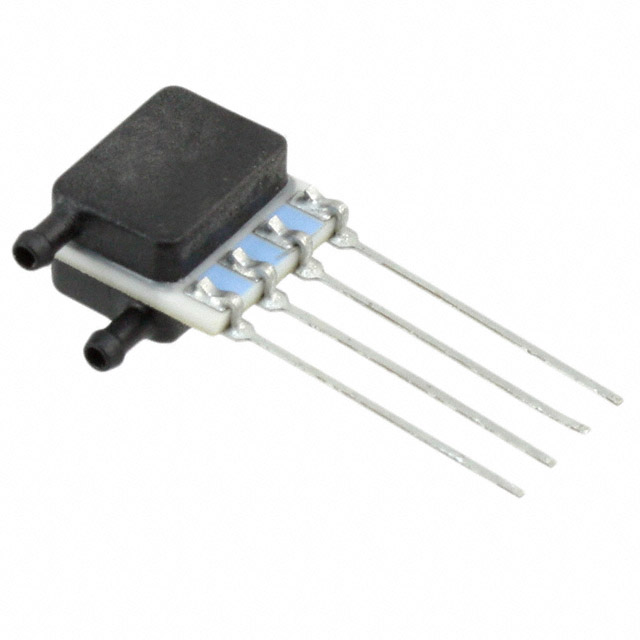

Honeywell Sensing and Productivity Solutions TruStability® NSC series pressure sensor, part number NSCSRRN004BGUNV. This vented gauge sensor offers an operating pressure range of 58.02 PSI (400 kPa) with a maximum pressure capability of 116.03 PSI (800 kPa). It features a 0 mV to 100 mV output across a 5V excitation, based on a Wheatstone bridge configuration. The sensor utilizes a 0.08-inch (1.92mm) barbed port and is housed in a 4-SIP package with dual ports on the same side. Designed for through-hole mounting, it operates within a temperature range of -40°C to 85°C and requires a supply voltage between 1.5V and 12V. Accuracy is specified at ±0.25%. This component is commonly found in board mount applications across various industrial and automation sectors.
Additional Information
Series: TruStability® NSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP, Dual Ports, Same Side |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 100 mV (5V) |
| Operating Pressure | 58.02PSI (400kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.08"" (1.92mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbed |
| Maximum Pressure | 116.03PSI (800kPa) |
