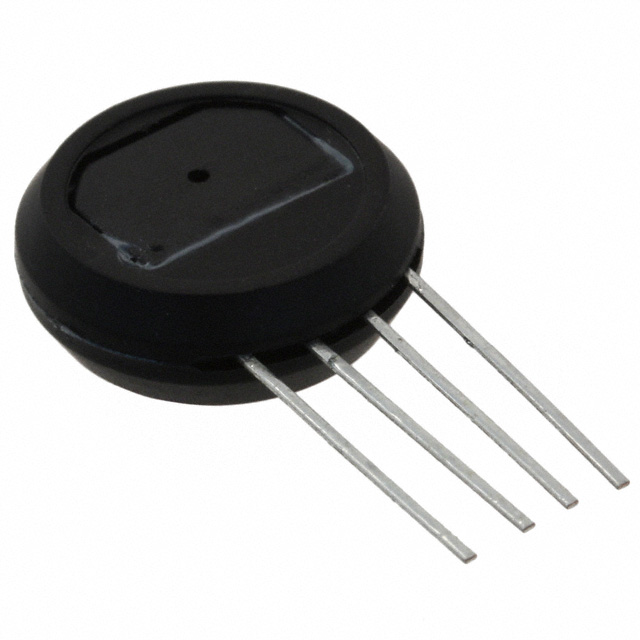

NSCSMNN150PDUNV
SENSOR 150PSID .2585V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions TruStability® NSC series NSCSMNN150PDUNV is a differential pressure sensor designed for board-mount applications. This 4-SIP module offers a ±150 PSI (±1034.21 kPa) operating pressure range with a ±250 PSI (±1723.69 kPa) maximum pressure rating. The sensor utilizes a Wheatstone bridge output configuration, providing a calibrated output voltage from 0 mV to 258.5 mV for a 5V excitation. It features an accuracy of ±0.25% and operates across a temperature range of -40°C to 85°C. The NSCSMNN150PDUNV is supplied in Bulk packaging with PC pin termination and is suitable for various industrial and high-performance systems requiring precise differential pressure measurement.
Additional Information
Series: TruStability® NSCRoHS Status: Request inventory verificationManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 258.5 mV (5V) |
| Operating Pressure | ±150PSI (±1034.21kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | No Port |
| Maximum Pressure | ±250PSI (±1723.69kPa) |
