NSCSMNN100PDUNV
SENSOR 100PSID .1725V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

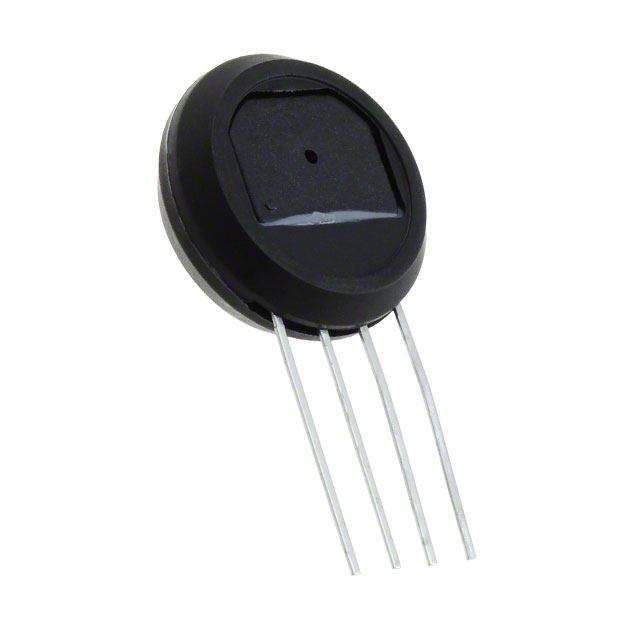

Honeywell Sensing and Productivity Solutions TruStability® NSC series differential pressure sensor, part number NSCSMNN100PDUNV. This 4-SIP module offers a ±100 PSI (±689.48kPa) operating pressure range with a ±250 PSI (±1723.69kPa) maximum. The output is a Wheatstone bridge, providing a range of 0 mV to 172.5 mV when supplied with 5V excitation. Designed for board mounting, this sensor features through-hole termination with PC pins. Operating across a temperature range of -40°C to 85°C, its accuracy is rated at ±0.25%. This component is suitable for applications in HVAC, industrial control, and medical instrumentation.
Additional Information
Series: TruStability® NSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 172.5 mV (5V) |
| Operating Pressure | ±100PSI (±689.48kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | No Port |
| Maximum Pressure | ±250PSI (±1723.69kPa) |
