NSCSGNN100PGUNV
SENSOR 100PSIG 0.19"" .086V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

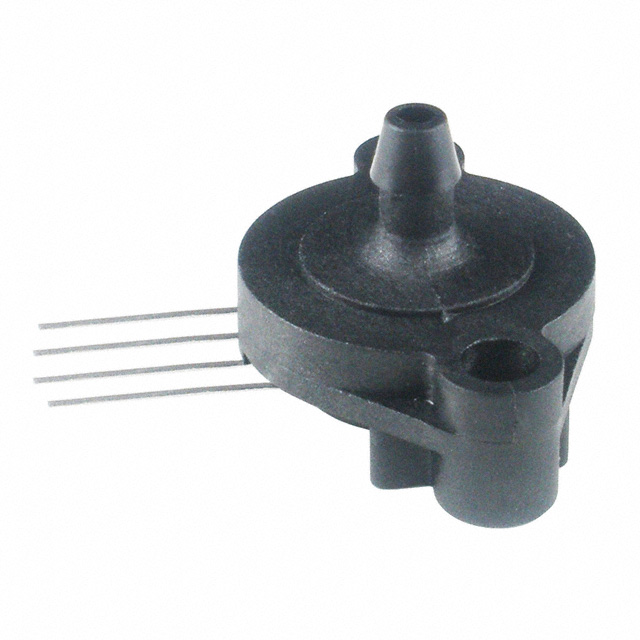

Honeywell Sensing and Productivity Solutions NSCSGNN100PGUNV is a TruStability® NSC series pressure sensor. This vented gauge sensor measures 100 PSI (689.48kPa) with a maximum pressure rating of 250 PSI (1723.69kPa). It features a 0.19 inch (4.78mm) barbed male port and a 4-SIP, Side Port package. The output is a Wheatstone bridge configuration, providing 0 mV to 86 mV with a 5V supply, and an accuracy of ±0.25%. Designed for board mount applications, it operates within a temperature range of -40°C to 85°C. The component is supplied in Bulk packaging and is suitable for use in industrial, medical, and HVAC applications.
Additional Information
Series: TruStability® NSCRoHS Status: Request inventory verificationManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP, Side Port |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 86 mV (5V) |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.19"" (4.78mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbed |
| Maximum Pressure | 250PSI (1723.69kPa) |
