NSCSANN001PDUNV
SENSOR 1PSID 0.19"" .065V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

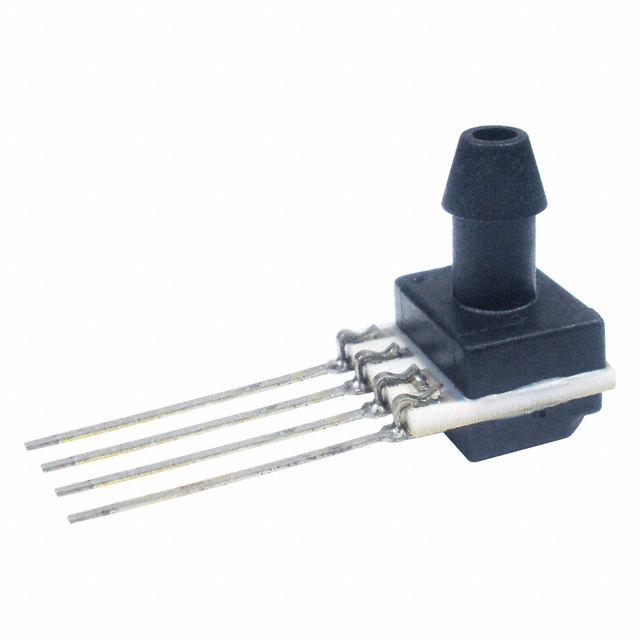

Honeywell Sensing and Productivity Solutions NSCSANN001PDUNV is a TruStability® NSC series differential pressure sensor. This component offers a ±1PSI (±6.89kPa) operating pressure range with a ±0.25% accuracy specification. The sensor features a 0 mV to 65 mV output, derived from a Wheatstone bridge configuration, with a supply voltage range of 1.5V to 12V. Designed for board mount applications, it utilizes a through-hole mounting type and a 4-SIP, Side Port package with PC Pin termination. The port is a male, barbed connection measuring 0.19" (4.93mm) in diameter. Operating across a temperature range of -40°C to 85°C, this sensor is suitable for applications requiring precise differential pressure measurement.
Additional Information
Series: TruStability® NSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP, Side Port |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 65 mV (5V) |
| Operating Pressure | ±1PSI (±6.89kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.19"" (4.93mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbed |
| Maximum Pressure | ±10PSI (±68.95kPa) |
