NSCSAAN400MDUNV
SENSOR 5.8PSID 0.19"" .174V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

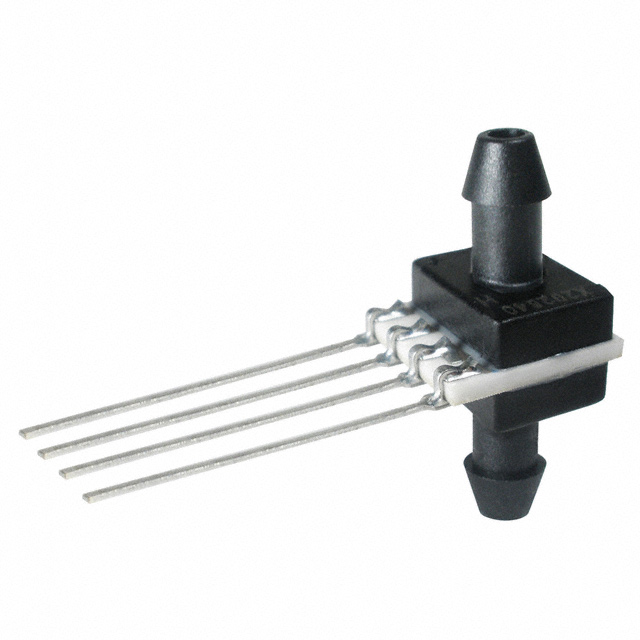

Honeywell Sensing and Productivity Solutions TruStability® NSC series NSCSAAN400MDUNV is a differential pressure sensor designed for precision measurement. This component offers an operating pressure range of ±5.8 PSI (±40 kPa) with a maximum pressure rating of ±20.02 PSI (±138 kPa). The sensor features a Wheatstone bridge output providing a 0 mV to 174 mV signal across a 5V excitation. It is housed in a 4-SIP package with dual barbed ports on opposite sides, each accommodating a 0.19-inch (4.93mm) male tube connection. The device supports a supply voltage from 1.5V to 12V and operates reliably within an ambient temperature range of -40°C to 85°C. Accuracy is specified at ±0.25%. This board-mount component is utilized in applications requiring precise differential pressure monitoring, including industrial automation and HVAC systems.
Additional Information
Series: TruStability® NSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP, Dual Ports, Opposite Sides |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 174 mV (5V) |
| Operating Pressure | ±5.8PSI (±40kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.19"" (4.93mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbed |
| Maximum Pressure | ±20.02PSI (±138kPa) |
