NSCMNNN150PGUNV
SENSOR 150PSIG .1295V 8SMTManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

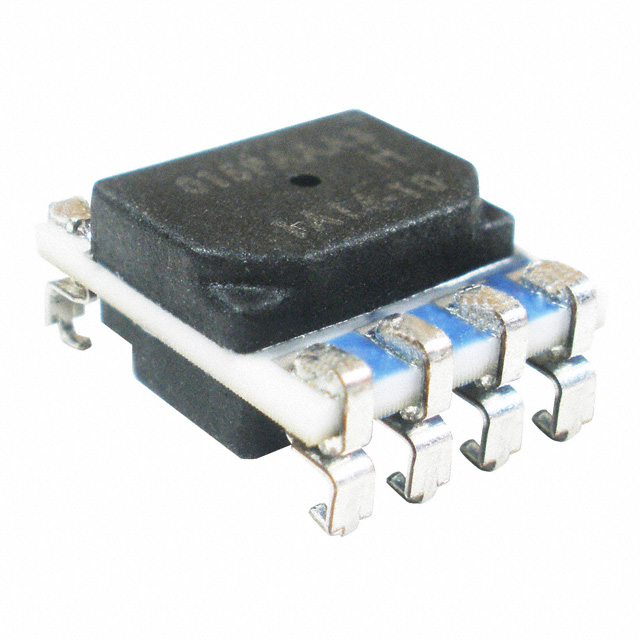

Honeywell Sensing and Productivity Solutions TruStability® NSC Series NSCMNNN150PGUNV is a vented gauge pressure sensor with an operating pressure range of 0 PSI to 150 PSI (1034.21 kPa). This board mount component features an 8-SMD, J-Lead package for surface mounting and delivers a Wheatstone bridge output ranging from 0 mV to 129.5 mV, compatible with a 5V excitation. The sensor operates within a temperature range of -40°C to 85°C and offers an accuracy of ±0.25%. Supporting a supply voltage from 1.5V to 12V, its maximum pressure rating is 250 PSI (1723.69 kPa). This device is suitable for applications in industrial automation, medical equipment, and HVAC systems.
Additional Information
Series: TruStability® NSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 8-SMD, J-Lead |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 129.5 mV (5V) |
| Operating Pressure | 150PSI (1034.21kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | J Lead |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 8-SMT |
| Port Style | No Port |
| Maximum Pressure | 250PSI (1723.69kPa) |
