NSCDRNN100PGUNV
SENSOR 100PSIG 0.08"" .086V 8DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

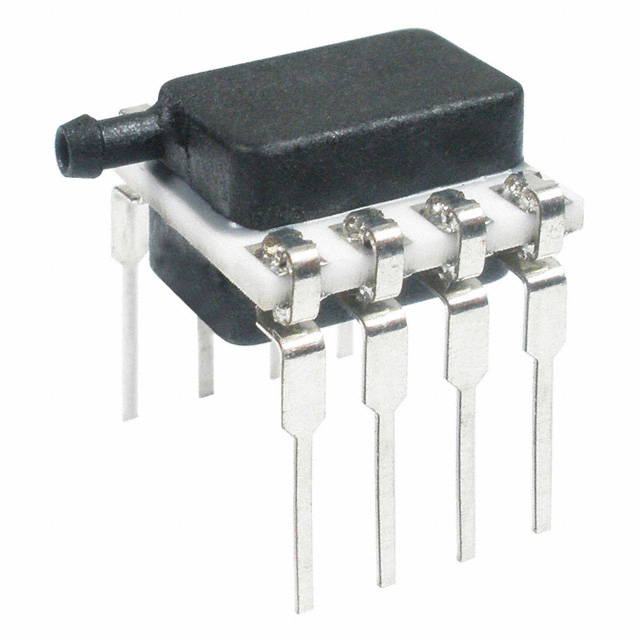

Honeywell Sensing and Productivity Solutions TruStability® NSC series NSCDRNN100PGUNV is a vented gauge pressure sensor. Designed for board mounting, this component features a 0 mV to 86 mV output across a 5V excitation, derived from a Wheatstone bridge configuration. It offers a 100 PSI (689.48kPa) operating pressure range with a maximum pressure rating of 250 PSI (1723.69kPa). The sensor utilizes a male barbed port with a 0.08" (1.93mm) tube for pressure connection. Housed in an 8-DIP package with a side port and PC pin termination, it operates within a -40°C to 85°C temperature range. Accuracy is specified at ±0.25%. This device is suitable for applications in industrial and medical instrumentation requiring precise pressure measurement.
Additional Information
Series: TruStability® NSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | PC Polished |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm), Side Port |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 86 mV (5V) |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.08"" (1.93mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbed |
| Maximum Pressure | 250PSI (1723.69kPa) |
