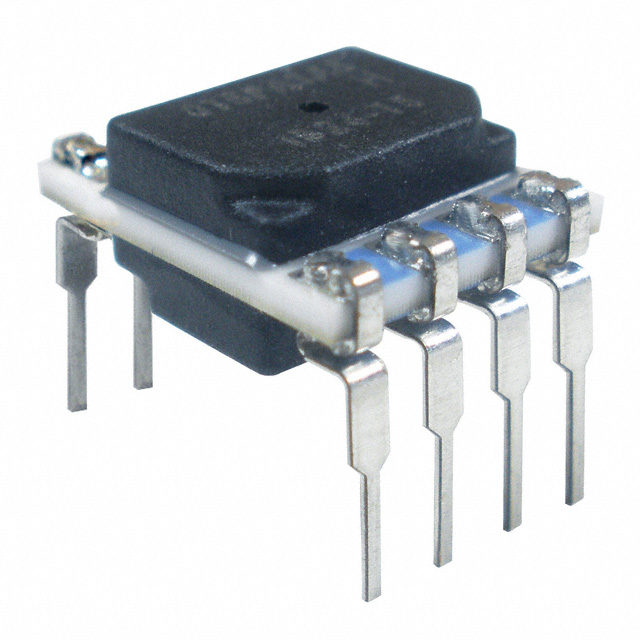

NSCDNNN015PAUNV
SENSOR 15PSIA .075V 8DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions TruStability® NSC series NSCDNNN015PAUNV is an absolute pressure sensor designed for precise measurement. This component offers a 15 PSI (103.42kPa) operating pressure range with a ±0.25% accuracy specification. The output signal is delivered via a Wheatstone bridge configuration, providing a 0 mV to 75 mV range across a 5V excitation voltage, compatible with supply voltages from 1.5V to 12V. Housed in an 8-DIP (0.524", 13.30mm) through-hole package with PC pin termination, it is suitable for board mount applications. The sensor operates reliably within a temperature range of -40°C to 85°C and features a portless design. This device finds application in various industrial control, aerospace, and medical equipment sectors where accurate pressure monitoring is critical.
Additional Information
Series: TruStability® NSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm) |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 75 mV (5V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | No Port |
| Maximum Pressure | 30PSI (206.84kPa) |
