NSCDANN005PGUNV
SENSOR 5PSIG 0.19"" .075V 8DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions TruStability® NSC series NSCDANN005PGUNV is a 5 psi (34.47kPa) vented gauge pressure sensor. This board mount component features a Wheatstone bridge output providing 0 mV to 75 mV with a 5V supply. The 8-DIP package with a top port and 0.19" barbed tube offers convenient through-hole mounting via PC pins. Designed for operation between -40°C and 85°C, it boasts an accuracy of ±0.25% and a maximum pressure rating of 20 psi (137.9kPa). This sensor is suitable for applications in industrial control, medical instrumentation, and HVAC systems.
Additional Information
Series: TruStability® NSCRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm), Top Port |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 75 mV (5V) |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 1.5V ~ 12V |
| Port Size | Male - 0.19"" (4.93mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbed |
| Maximum Pressure | 20PSI (137.9kPa) |
Request a Quote
Clients Also Buy
NSCSSNN100PDUNV
SENSOR 100PSID .1725V 4SIP

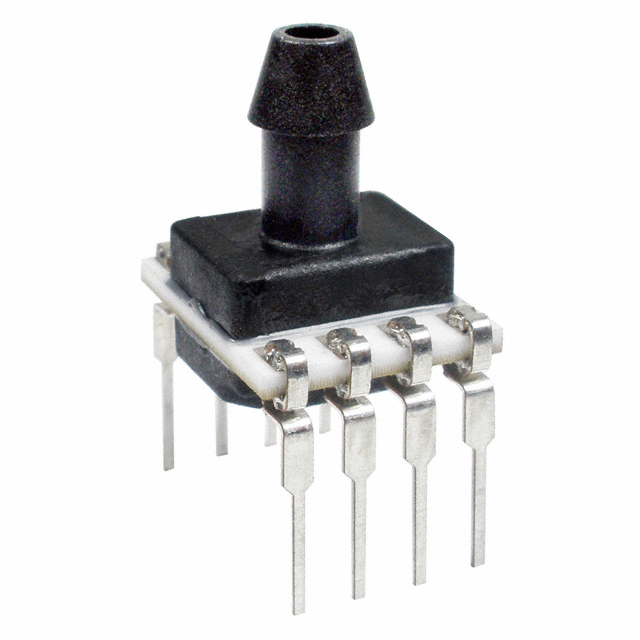

NSCDANN001PGUNV
