NBPMLNN060PGUNV
SENSOR 60PSIG 0.13"" .105VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

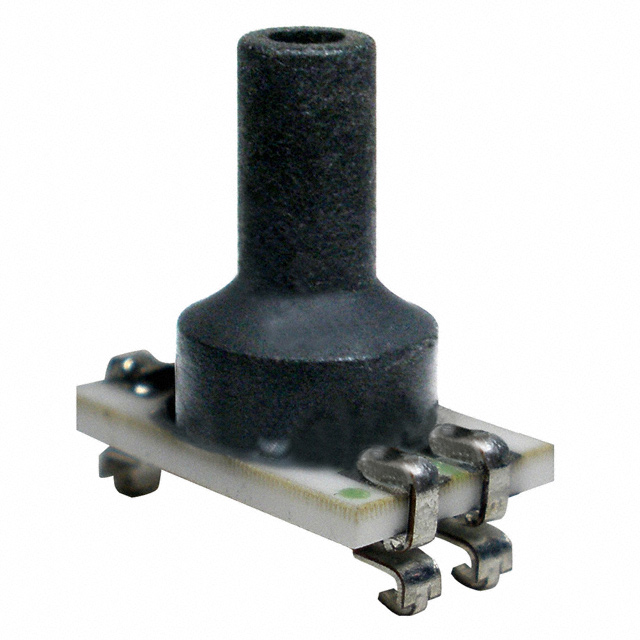

Honeywell Sensing and Productivity Solutions NBP series NBPMLNN060PGUNV is a vented gauge pressure sensor with an operating pressure of 60PSI (413.69kPa). This surface-mount component features a 0.13" (3.18mm) tube port and a 4-SMD, J-Lead, Top Port package. The sensor provides a Wheatstone bridge output ranging from 0 mV to 105 mV with a supply voltage of 1.8V to 12V. Designed for board mounting applications, it offers an accuracy of ±0.25% and an operating temperature range of -40°C to 125°C. The maximum pressure rating is 120PSI (827.37kPa). This component is utilized in various industrial and commercial applications.
Additional Information
Series: NBPRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SMD, J-Lead, Top Port |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 105 mV (5V) |
| Operating Pressure | 60PSI (413.69kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | J Lead |
| Voltage - Supply | 1.8V ~ 12V |
| Port Size | Male - 0.13"" (3.18mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 120PSI (827.37kPa) |
