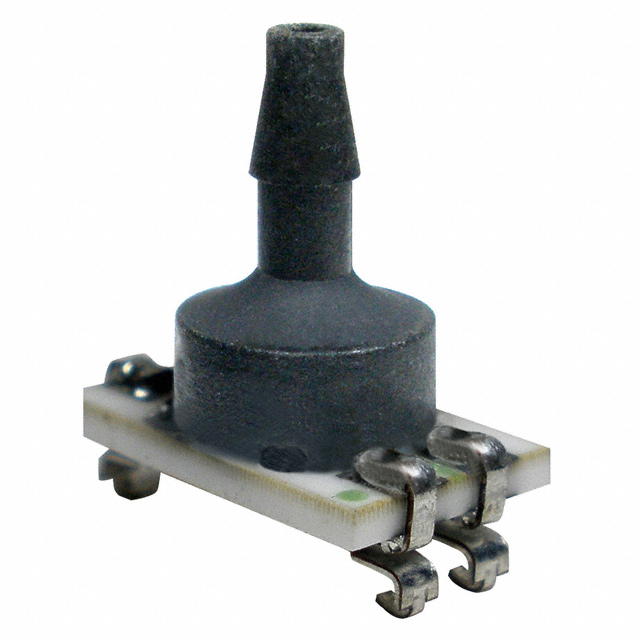

NBPMANN150PAUNV

SENSOR 150PSIA 0.11"" .13V

Manufacturer: Honeywell Sensing and Productivity Solutions

Categories: Pressure Sensors, Transducers

Quality Control: Learn More

Honeywell Sensing and Productivity Solutions NBP series absolute pressure sensor, part number NBPMANN150PAUNV. This 150 PSI (1034.21kPa) absolute pressure sensor features a 0.11" (2.74mm) barbed male port and a 4-SMD, J-Lead package with a top port configuration. It offers a 0 mV to 130 mV output range over a 5V excitation voltage, derived from a Wheatstone bridge configuration. The device operates with a supply voltage from 1.8V to 12V and provides an accuracy of ±0.25%. Its operating temperature range is -40°C to 125°C, with a maximum pressure rating of 240 PSI (1654.74kPa). This surface-mount component is suitable for board-mount applications in industries such as industrial automation, medical devices, and HVAC systems.

Additional Information

Series: NBPRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
Features-
PackagingBulk
Package / Case4-SMD, J-Lead, Top Port
Output TypeWheatstone Bridge
Mounting TypeSurface Mount
Output0 mV ~ 130 mV (5V)
Operating Pressure150PSI (1034.21kPa)
Pressure TypeAbsolute
Accuracy±0.25%
Operating Temperature-40°C ~ 125°C
Termination StyleJ Lead
Voltage - Supply1.8V ~ 12V
Port SizeMale - 0.11"" (2.74mm) Tube
ApplicationsBoard Mount
Supplier Device Package-
Port StyleBarbed
Maximum Pressure240PSI (1654.74kPa)
