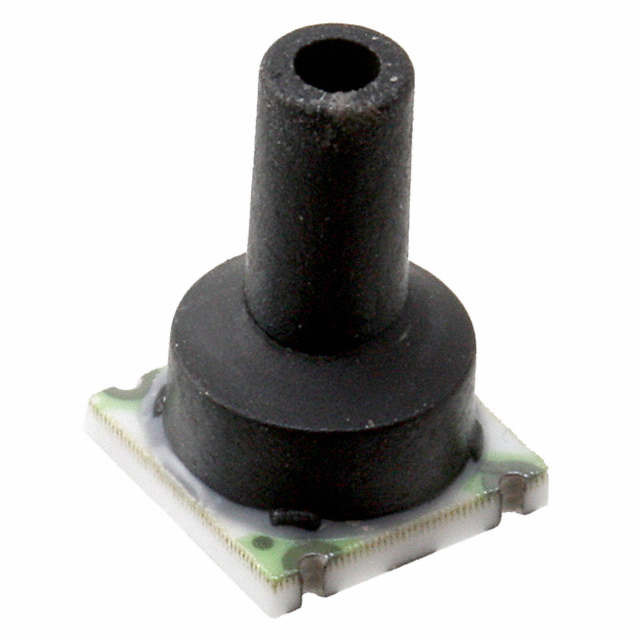

NBPLLNN005PGUNV
SENSOR 5PSIG 0.13"" .075VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The Honeywell Sensing and Productivity Solutions NBP series NBPLLNN005PGUNV is a pressure sensor designed for board mount applications. This vented gauge sensor measures operating pressures up to 5 PSI (34.47 kPa) with a maximum pressure rating of 30 PSI (206.84 kPa). It features a 0.13" (3.18mm) male tube port with a barbless port style. The output signal is provided by a Wheatstone bridge, ranging from 0 mV to 75 mV when supplied with 5V, and is compatible with supply voltages from 1.8V to 12V. The sensor offers ±0.25% accuracy and operates within a temperature range of -40°C to 125°C. Packaged in a 6-SMD, No Lead, Top Port configuration with SMT tab termination, this component is suitable for various industrial and consumer electronics applications.
Additional Information
Series: NBPRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-SMD, No Lead, Top Port |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 75 mV (5V) |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.8V ~ 12V |
| Port Size | Male - 0.13"" (3.18mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 30PSI (206.84kPa) |
Request a Quote
Clients Also Buy

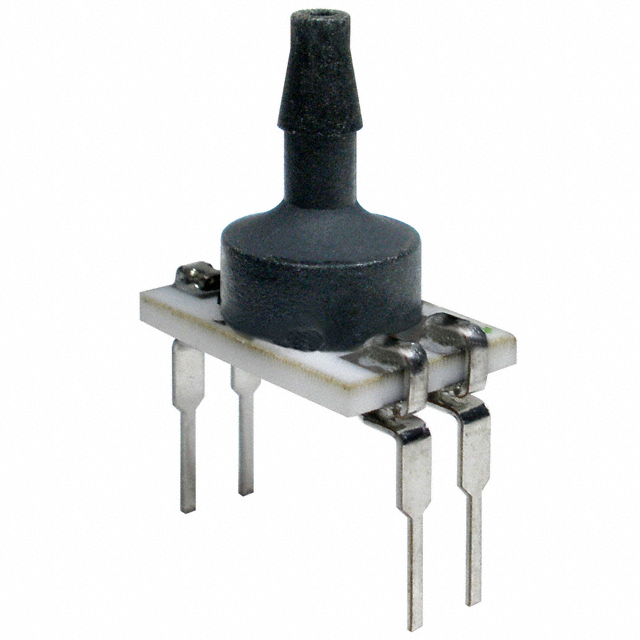

NBPDANN030PAUNV
