NBPLANS001PGUNV
SENSOR 1PSIG 0.75"" .0325VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

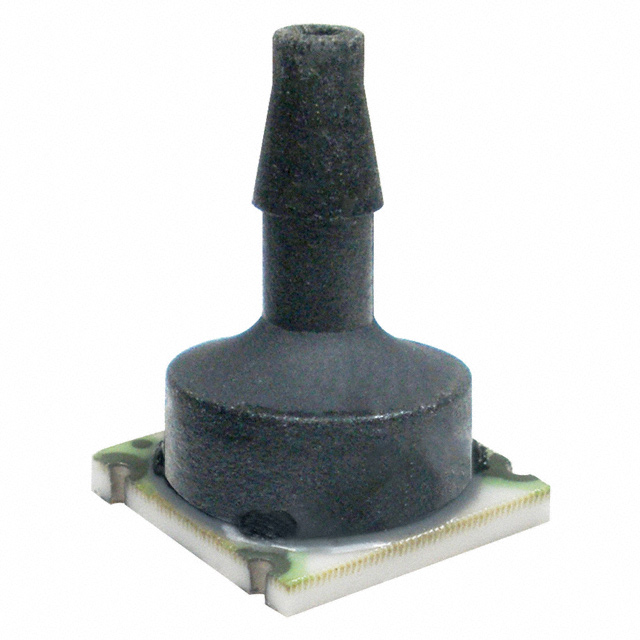

Honeywell Sensing and Productivity Solutions NBP series NBPLANS001PGUNV is a vented gauge pressure sensor designed for 1 PSI (6.89 kPa) operation. This surface-mount device features a 0.75" (1.91mm) barbed port and outputs a Wheatstone bridge signal ranging from 0 mV to 32.5 mV with a 5V excitation voltage. Operating within a supply voltage of 1.8V to 12V, the sensor maintains an accuracy of ±0.25% and can withstand a maximum pressure of 10 PSI (68.95 kPa). Its operating temperature range is -40°C to 125°C. This component is suitable for board mount applications, commonly found in industrial automation and HVAC systems. The package is Bulk.
Additional Information
Series: NBPRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-SMD, No Lead, Top Port |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 32.5 mV (5V) |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.8V ~ 12V |
| Port Size | Male - 0.75"" (1.91mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 10PSI (68.95kPa) |
