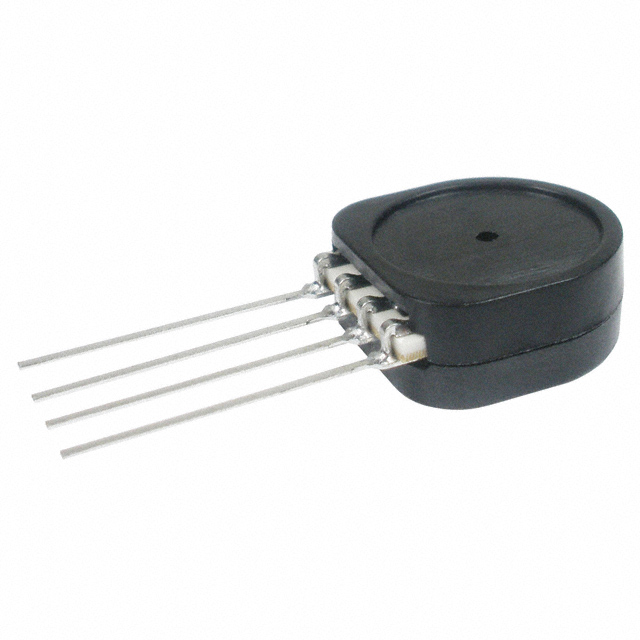

HSCSSNT060PGAA5
SENSOR 30PSIG 4.5V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 30PSI (206.84kPa) Vented Gauge 0.5 V ~ 4.5 V 4-SIP Module
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | No Port |
| Maximum Pressure | 120PSI (827.37kPa) |
Request a Quote
