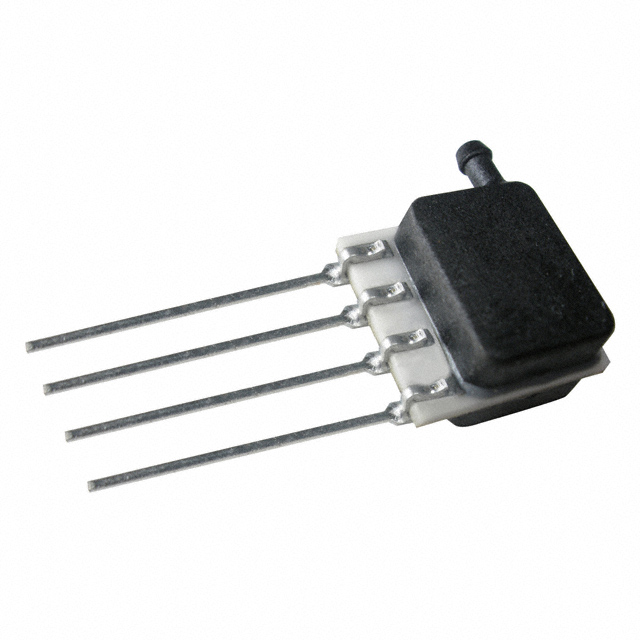

HSCSRNN1.6BA2A3
SENSOR 23.21PSIA 0.08"" 12BIT SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions HSCSRNN1-6BA2A3 from the TruStability® HSC series is an absolute pressure sensor designed for board mounting. This component features an amplified and temperature-compensated output, providing a 12-bit resolution via an I2C interface. The sensor operates within a pressure range of 0 to 23.21 PSI (160 kPa) and is rated for a maximum pressure of 58.02 PSI (400 kPa). Its 4-SIP package with a side port includes a barbed male port connector for a 0.08-inch (1.92mm) tube. The operating temperature range is -20°C to 85°C, with a supply voltage requirement of 3V to 3.6V. This sensor is suitable for applications requiring precise absolute pressure measurement in demanding environments.
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP, Side Port |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | 23.21PSI (160kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.08"" (1.92mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbed |
| Maximum Pressure | 58.02PSI (400kPa) |
