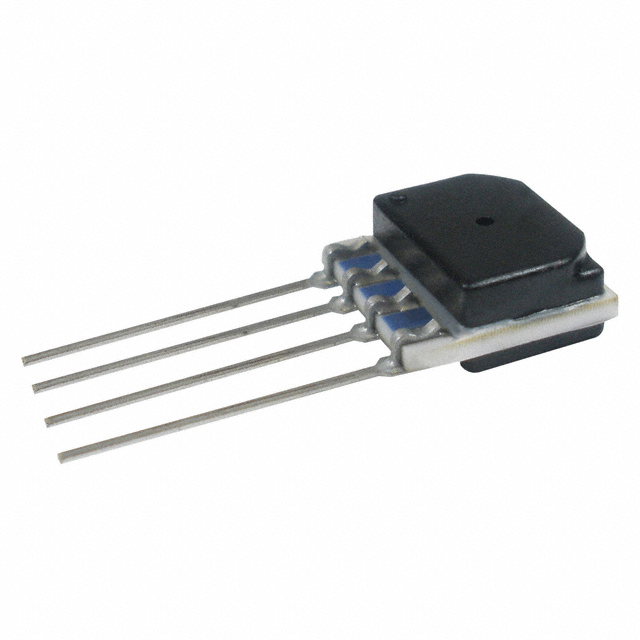

HSCSNNN015PAAA5
SENSOR 15PSIA 4.5V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions TruStability® HSC series HSCSNNN015PAAA5 is an absolute pressure sensor designed for precise measurements. This 15 PSIA (103.42kPa) sensor features an amplified, temperature-compensated analog voltage output ranging from 0.5V to 4.5V, with a high accuracy of ±0.25%. It operates within a supply voltage of 4.75V to 5.25V and offers a wide operating temperature range of -20°C to 85°C. The 4-SIP module package with PC pin termination is suitable for board mount applications, commonly found in industrial, medical, and aerospace sectors. The maximum pressure rating for this component is 30 PSI (206.84kPa).
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | No Port |
| Maximum Pressure | 30PSI (206.84kPa) |
