HSCSMNN100PG2A5
SENSOR 100PSIG 12BIT 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

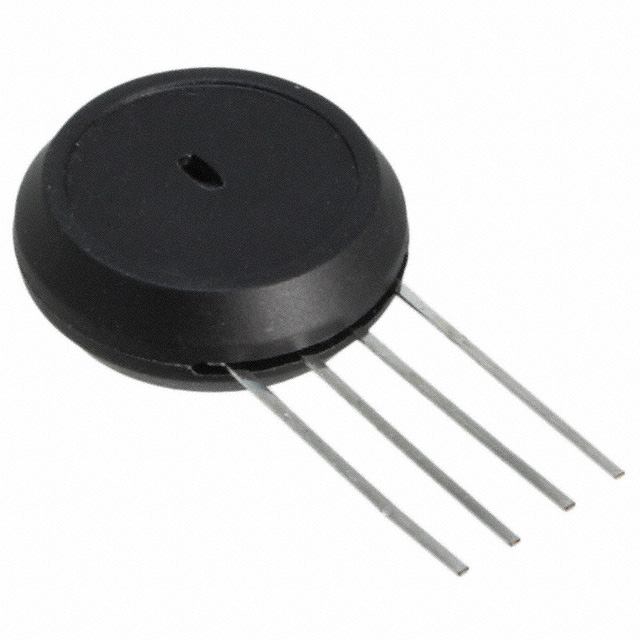

Honeywell Sensing and Productivity Solutions TruStability® HSC series HSCSMNN100PG2A5 is a 100 PSI (689.48kPa) vented gauge pressure sensor with a 12-bit output resolution. This amplified, temperature-compensated sensor offers ±0.25% accuracy and operates within a pressure range of 0 to 100 PSI. Featuring an I2C output interface and a 4-SIP module package, it is designed for board mount applications. The device operates from a 4.75V to 5.25V supply voltage and has an operating temperature range of -20°C to 85°C. The termination style is PC Pin with a through-hole mounting type. This component is suitable for use in industrial automation, medical instrumentation, and HVAC systems.
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | No Port |
| Maximum Pressure | 250PSI (1723.69kPa) |
