HSCSMNN001PDAA3
SENSOR 1PSID 2.97V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

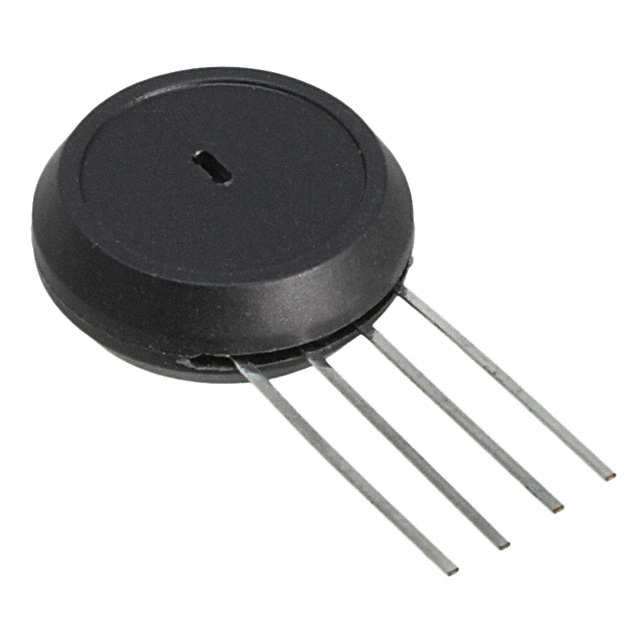

Honeywell Sensing and Productivity Solutions TruStability® HSC series differential pressure sensor, part number HSCSMNN001PDAA3, offers a ±1 PSI (±6.89kPa) operating pressure range. This amplified, temperature-compensated sensor provides an analog voltage output from 0.33V to 2.97V, supplied by a 3V to 3.6V source. Featuring a 4-SIP module package with PC pin termination for through-hole mounting, it is designed for board mount applications. The sensor exhibits a ±0.25% accuracy and operates within a -20°C to 85°C temperature range. Its robust design makes it suitable for various industrial and medical equipment applications.
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tube |
| Package / Case | 4-SIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.33 V ~ 2.97 V |
| Operating Pressure | ±1PSI (±6.89kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | No Port |
| Maximum Pressure | ±10PSI (±68.95kPa) |
