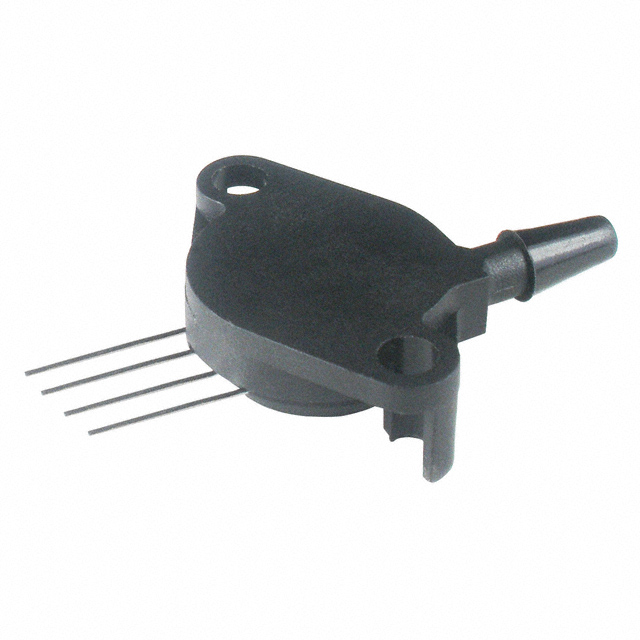

HSCSHNN150PGAA5
SENSOR 150PSIG 0.19"" 4.5V 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions TruStability® HSC series HSCSHNN150PGAA5 is a high-accuracy, amplified, temperature-compensated pressure sensor. This vented gauge sensor measures at 150 PSI (1034.21kPa) with a maximum pressure rating of 250 PSI (1723.69kPa). It features a 0.19-inch (4.78mm) barbed port and provides an analog voltage output ranging from 0.5V to 4.5V. Designed for board mounting, it utilizes a 4-SIP package with through-hole termination. Operating across a temperature range of -20°C to 85°C, this component is suitable for applications requiring precise pressure monitoring in industrial and medical equipment. The supply voltage range is 4.75V to 5.25V.
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP, Side Port |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 150PSI (1034.21kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.19"" (4.78mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbed |
| Maximum Pressure | 250PSI (1723.69kPa) |
