HSCSGND015PA3A3
SENSOR 15PSIA 0.19"" 12BIT 4SIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

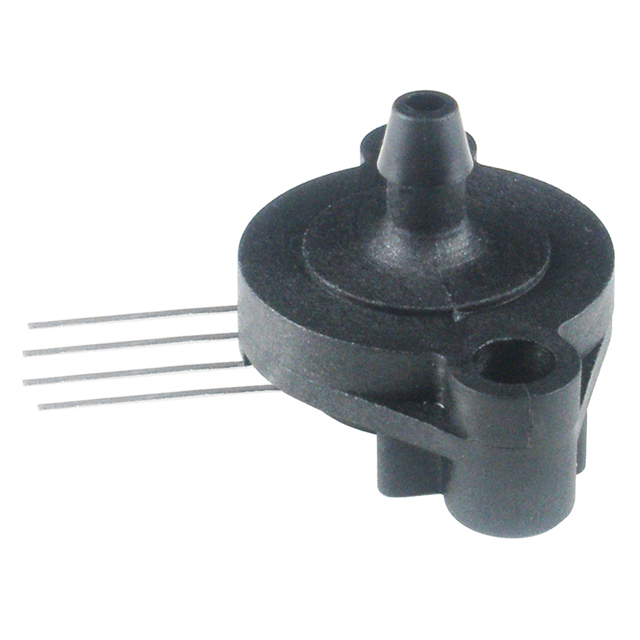

Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.19"" (4.78mm) Tube 12 b 4-SIP, Side Port
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP, Side Port |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.19"" (4.78mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 4-SIP |
| Port Style | Barbed |
| Maximum Pressure | 30PSI (206.84kPa) |
