HSCMRRD400MG2A3
SENSOR 5.8PSIG 0.08"" 12BIT 8SMDManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

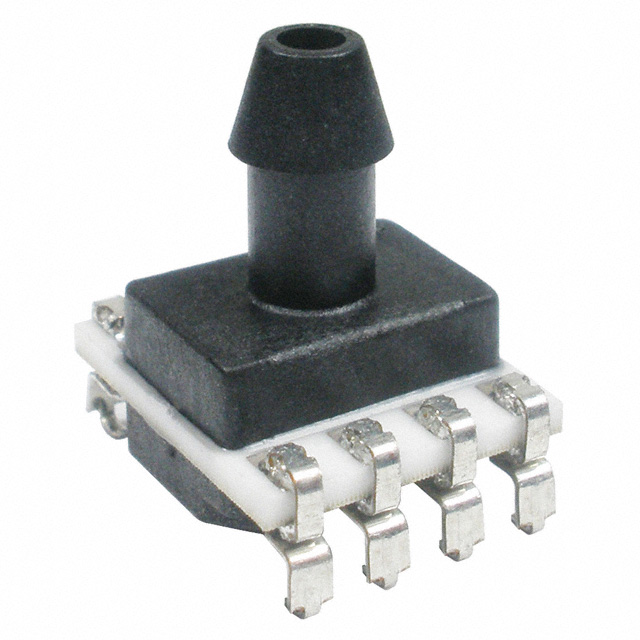

Honeywell Sensing and Productivity Solutions TruStability® HSC series HSCMRRD400MG2A3 is a board-mount pressure sensor designed for vented gauge applications. This component operates within a 3V to 3.6V supply voltage range and features a 12-bit I2C digital output. The sensor measures an operating pressure of 5.8 PSI (40kPa) and has a maximum pressure rating of 29.01 PSI (200kPa). Its accuracy is specified at ±0.25%. The HSCMRRD400MG2A3 utilizes an 8-SMD, J-lead package with dual ports on the same side, featuring a male -0.08” (1.93mm) barbed tube port. This amplified, temperature-compensated sensor is suitable for a wide operating temperature range of -20°C to 85°C and finds application in industrial and medical instrumentation.
Additional Information
Series: TruStability® HSCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 50 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-SMD, J-Lead, Dual Ports, Same Side |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Output | 12 b |
| Operating Pressure | 5.8PSI (40kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | J Lead |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.08"" (1.93mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 8-SMD |
| Port Style | Barbed |
| Maximum Pressure | 29.01PSI (200kPa) |
