HSCMNNN015PASA5
SENSOR 15PSIA 12BIT 8SMDManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

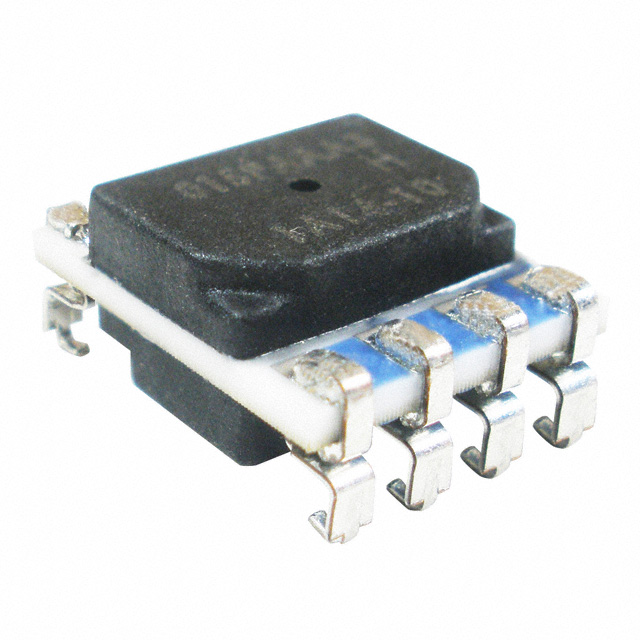

Honeywell Sensing and Productivity Solutions TruStability® HSC series HSCMNNN015PASA5 is an absolute pressure sensor with a 15 PSIA (103.42 kPa) operating range. This 8-SMD, J-Lead component offers a ±0.25% accuracy and features amplified, temperature-compensated output via SPI communication. Designed for board mount applications, it operates within a 4.75V to 5.25V supply voltage range and across an ambient temperature spectrum of -20°C to 85°C. The sensor is rated for a maximum pressure of 30 PSI (206.84 kPa). Its robust construction and precise sensing capabilities make it suitable for use in industrial automation, medical devices, and HVAC systems.
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-SMD, J-Lead |
| Output Type | SPI |
| Mounting Type | Surface Mount |
| Output | 12 b |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | J Lead |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 8-SMD |
| Port Style | No Port |
| Maximum Pressure | 30PSI (206.84kPa) |
