HSCMLNN250MG6A3
SENSOR 3.63PSIG 0.1"" 12BIT 8SMDManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

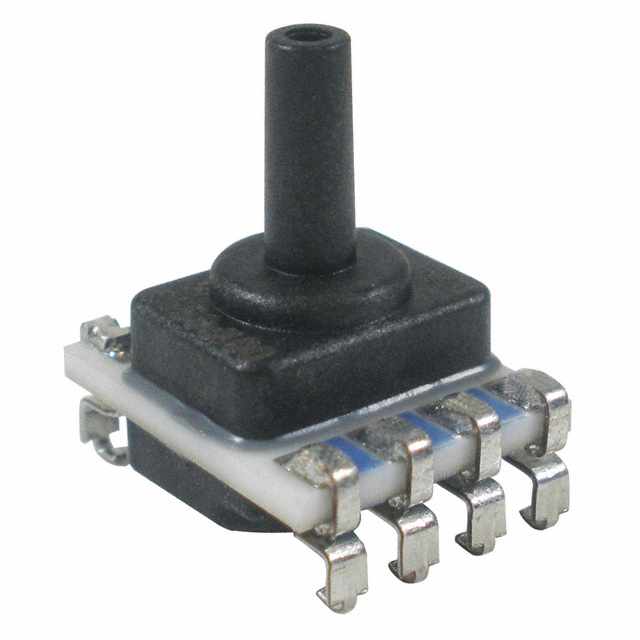

Honeywell Sensing and Productivity Solutions TruStability® HSC series HSCMLNN250MG6A3 is a 3.63 PSI (25kPa) vented gauge pressure sensor. This amplified, temperature-compensated sensor features a 12-bit I2C output for precise digital measurement. The component is designed for surface mount applications with its 8-SMD, J-Lead, top port package. It utilizes a barbless port style with a male -0.1" (2.47mm) tube connection. The operating pressure range is up to 3.63 PSI, with a maximum pressure capability of 20.31 PSI. Operating across a -20°C to 85°C temperature range, this sensor is suitable for demanding applications in industries such as industrial automation, medical devices, and HVAC systems.
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: 48 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-SMD, J-Lead, Top Port |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Output | 12 b |
| Operating Pressure | 3.63PSI (25kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | J Lead |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.1"" (2.47mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 8-SMD |
| Port Style | Barbless |
| Maximum Pressure | 20.31PSI (140kPa) |
