HSCMDRT060MDSA3
SENSOR 0.87PSID 0.19"" 12BIT 8SMDManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

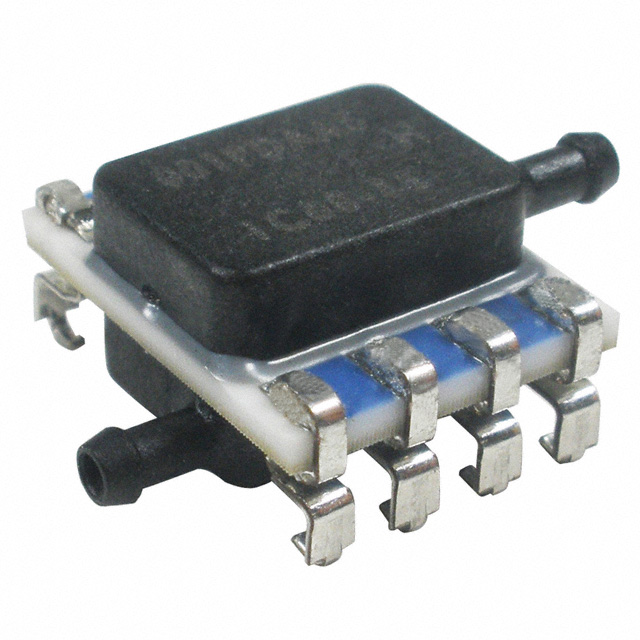

Honeywell Sensing and Productivity Solutions TruStability® HSC series differential pressure sensor, part number HSCMDRT060MDSA3. This amplified, temperature-compensated sensor provides a differential pressure range of ±0.87 PSI (±6 kPa) with an accuracy of ±0.25%. It features a 12-bit SPI output and is housed in an 8-SMD, J-Lead package with dual barbed ports for 0.19" tubing on opposite sides. Designed for board mounting, this component operates within a voltage supply range of 3.27V to 3.33V and an industrial operating temperature range of -20°C to 85°C. The HSCMDRT060MDSA3 is suitable for applications in medical equipment and industrial control systems.
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-SMD, J-Lead, Dual Ports, Opposite Sides |
| Output Type | SPI |
| Mounting Type | Surface Mount |
| Output | 12 b |
| Operating Pressure | ±0.87PSI (±6kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | J Lead |
| Voltage - Supply | 3.27V ~ 3.33V |
| Port Size | Male - 0.19"" (4.93mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 8-SMD |
| Port Style | Barbed |
| Maximum Pressure | ±12.33PSI (±85kPa) |
Request a Quote
