HSCDRNN100PGAA3
SENSOR 100PSIG 0.08"" 2.97V 8DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

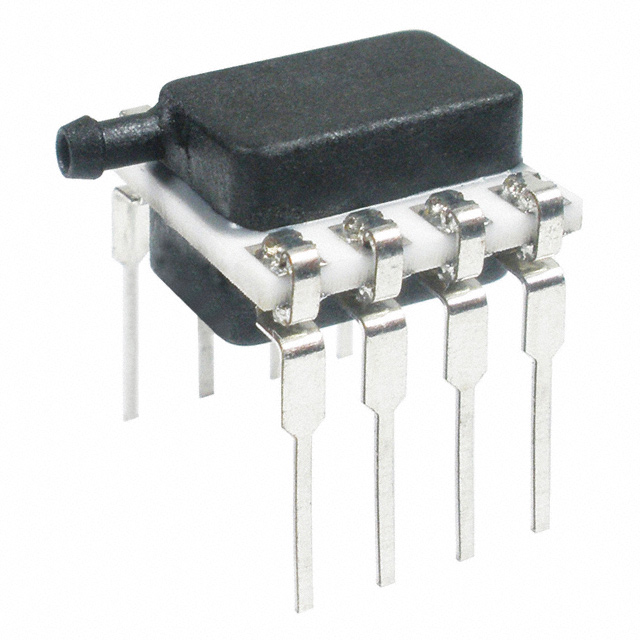

Honeywell Sensing and Productivity Solutions TruStability® HSC series HSCDRNN100PGAA3 is a vented gauge pressure sensor designed for precise measurement. This component offers a 100 PSI (689.48 kPa) operating pressure range with a ±0.25% accuracy. It features an amplified, temperature-compensated analog voltage output, ranging from 0.33 V to 2.97 V, supplied by a 3V to 3.6V voltage source. The sensor is housed in an 8-DIP package with a side port, connecting via a male 0.08" (1.93mm) barbed tube port. This through-hole mounted device is suitable for board mount applications and operates within a temperature range of -20°C to 85°C. The maximum pressure rating is 250 PSI (1723.69 kPa). It is commonly utilized in industrial and medical equipment requiring accurate pressure monitoring.
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm), Side Port |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.33 V ~ 2.97 V |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.08"" (1.93mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbed |
| Maximum Pressure | 250PSI (1723.69kPa) |
