HSCDNNN030PAAA3
SENSOR 30PSIA 2.97VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

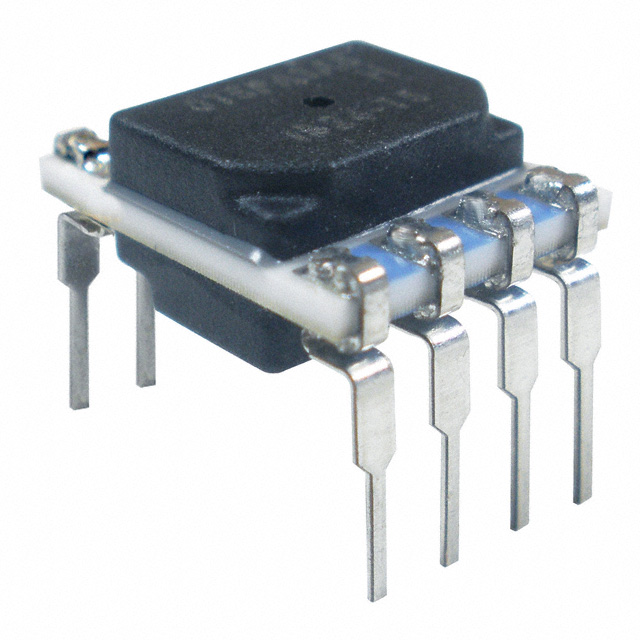

Honeywell Sensing and Productivity Solutions TruStability® HSC series HSCDNNN030PAAA3 is an absolute pressure sensor featuring a 30PSIA (206.84kPa) operating pressure range. This amplified analog output sensor provides a voltage output from 0.33V to 2.97V, with a typical accuracy of ±0.25%. Designed for board mount applications, it utilizes an 8-DIP package with a 0.524" (13.30mm) pin pitch and through-hole mounting. The sensor operates within a supply voltage of 3V to 3.6V and an ambient temperature range of -20°C to 85°C, with inherent temperature compensation. Its robust construction and amplified output make it suitable for demanding industrial and medical applications.
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm) |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.33 V ~ 2.97 V |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 60PSI (413.69kPa) |
