HSCDLNT060PGAA5
SENSOR 60PSIG 0.1"" 4.5V 8DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

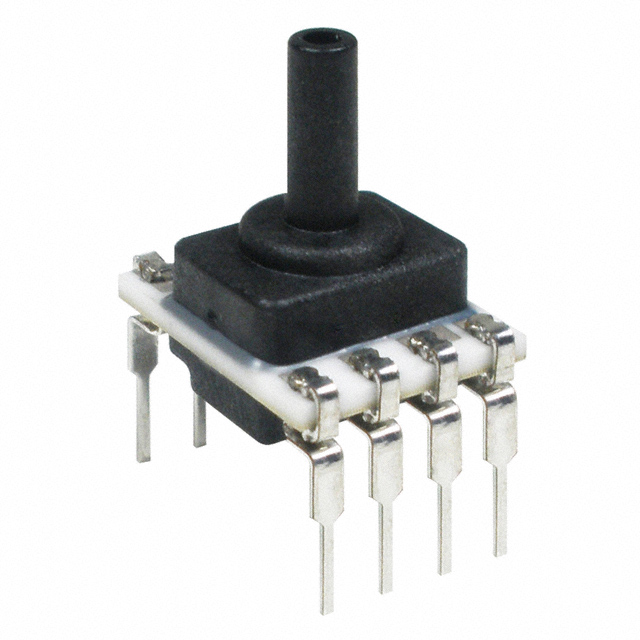

Honeywell Sensing and Productivity Solutions TruStability® HSC series HSCDLNT060PGAA5 is a pressure sensor designed for board mount applications. This vented gauge sensor accurately measures pressure up to 60 psi (413.69 kPa) with a ±0.25% accuracy. It features an amplified, temperature-compensated analog voltage output ranging from 0.5 V to 4.5 V, powered by a supply voltage of 4.75 V to 5.25 V. The component utilizes a male, barbless port with a 0.1" (2.47mm) tube for connection. Packaged in an 8-DIP format with a top port, this sensor operates within a temperature range of -20°C to 85°C. Applications include industrial automation and medical equipment.
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm), Top Port |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | 60PSI (413.69kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.1"" (2.47mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbless |
| Maximum Pressure | 120PSI (827.37kPa) |
