HSCDDRN250MDSA5
SENSOR 3.63PSID 0.08"" 12BIT 8DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

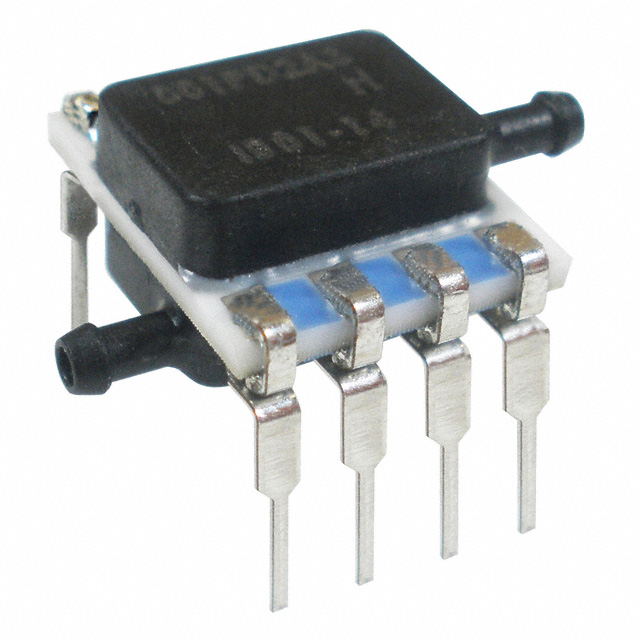

Honeywell Sensing and Productivity Solutions TruStability® HSC series HSCDDRN250MDSA5 is a differential pressure sensor with an operating range of ±3.63PSI (±25kPa). This component features a ±0.25% accuracy and provides a 12-bit SPI output. The sensor is designed for board mounting and is temperature compensated with amplified output. It utilizes a through-hole mounting type and a barbed port style with male 0.08" (1.93mm) tubing. The package is an 8-DIP (0.524", 13.30mm) with dual ports on opposite sides. Power is supplied via a voltage range of 4.75V to 5.25V. This sensor is suitable for applications in the aerospace and medical industries.
Additional Information
Series: TruStability® HSCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm), Dual Ports, Opposite Sides |
| Output Type | SPI |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | ±3.63PSI (±25kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.08"" (1.93mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbed |
| Maximum Pressure | ±20.31PSI (±140kPa) |
