HSCDDRD001PD2A3
SENSOR 1PSID 0.08"" 12BIT 8DIPManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

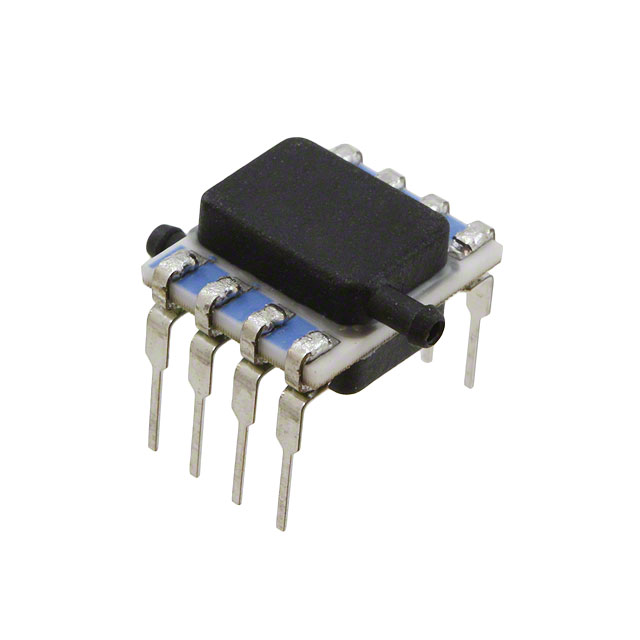

The Honeywell Sensing and Productivity Solutions HSCDDRD001PD2A3 is a TruStability® HSC series differential pressure sensor designed for board mount applications. This amplified and temperature-compensated component offers a ±1 PSI (±6.89 kPa) operating pressure range with a ±0.25% accuracy. The sensor features a dual 12-bit output via I2C communication, housed in an 8-DIP package with dual barbed ports on opposite sides, each accepting a 0.08" (1.93mm) tube. Operating from a 3V to 3.6V supply, it functions across a temperature range of -20°C to 85°C. This device is suitable for use in industrial automation, medical equipment, and HVAC systems requiring precise differential pressure measurement.
Additional Information
Series: TruStability® HSCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP (0.524"", 13.30mm), Dual Ports, Opposite Sides |
| Output Type | I2C |
| Mounting Type | Through Hole |
| Output | 12 b |
| Operating Pressure | ±1PSI (±6.89kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 3.6V |
| Port Size | Male - 0.08"" (1.93mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbed |
| Maximum Pressure | ±10PSI (±68.95kPa) |
