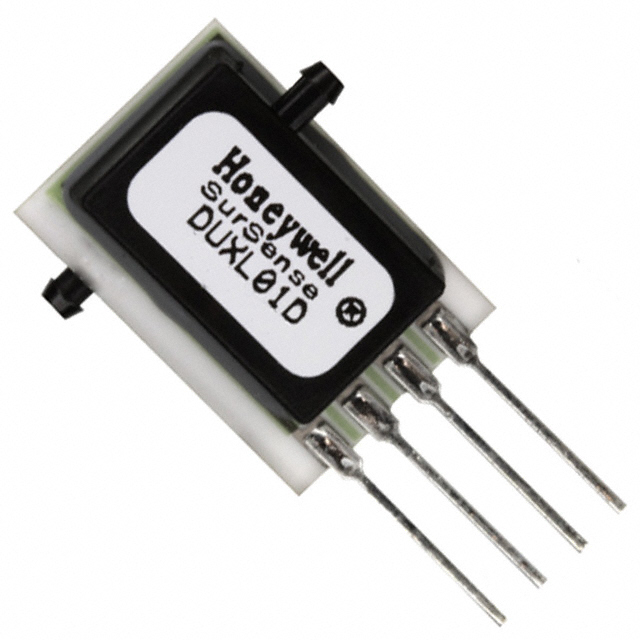

DUXL01D
SENSOR 0.04PSID 0.08"" .006VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions DUXL series DUXL01D differential pressure sensor. This 4-SIP module measures 0.04 PSI (0.25 kPa) with ±0.5% accuracy. It features a male, barbed port connection for a 0.08" (2.03mm) tube, dual configuration. The sensor operates within a 3V to 8V supply voltage range, providing a Wheatstone bridge output of 0 mV to 6 mV at 4.5V excitation. Designed for board mounting with PC pin termination, this component is suitable for applications requiring precise differential pressure monitoring in environments from -25°C to 85°C. The maximum pressure rating is 3.61 PSI (24.92 kPa).
Additional Information
Series: DUXLRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 6 mV (4.5V) |
| Operating Pressure | 0.04PSI (0.25kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.5% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 8V |
| Port Size | Male - 0.08"" (2.03mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 3.61PSI (24.92kPa) |
Request a Quote
Clients Also Buy

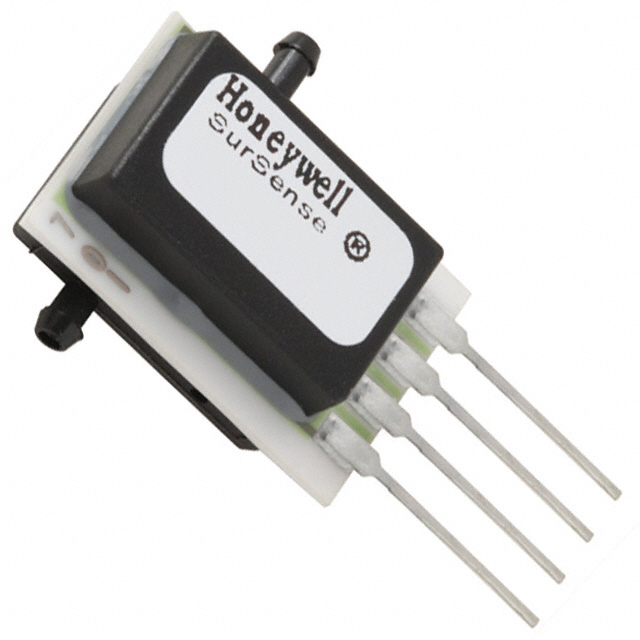

DUXL05D
