DCXL05DS
SENSOR 0.18PSID 0.19"" .02VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The Honeywell Sensing and Productivity Solutions DCXL-DS series pressure sensor, part number DCXL05DS, is a differential pressure sensor designed for board mounting applications. This 6-SIP module features a 0.19-inch barbed port for dual differential pressure sensing up to 0.18 PSI (1.25 kPa). The sensor provides a Wheatstone bridge output signal ranging from 0 mV to 20 mV, compatible with supply voltages from 3V to 16V. Engineered for precision, it offers ±0.25% accuracy and is temperature compensated, operating within a -25°C to 85°C range. Its through-hole mounting and PC pin termination facilitate integration into various electronic designs. This component is utilized in applications requiring precise differential pressure monitoring across industries such as industrial automation and medical equipment.
Additional Information
Series: DCXL-DSRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | 6-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 20 mV (12V) |
| Operating Pressure | 0.18PSI (1.25kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.19"" (4.83mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 5PSI (34.47kPa) |
Request a Quote
Clients Also Buy

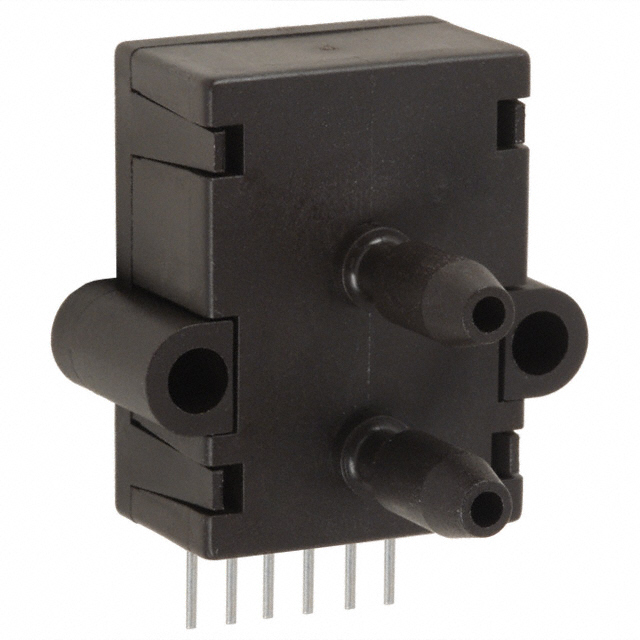

DCXL01DS
SENSOR 0.04PSID 0.19"" .01V
DCXL10DS
SENSOR 0.36PSID 0.19"" .02V

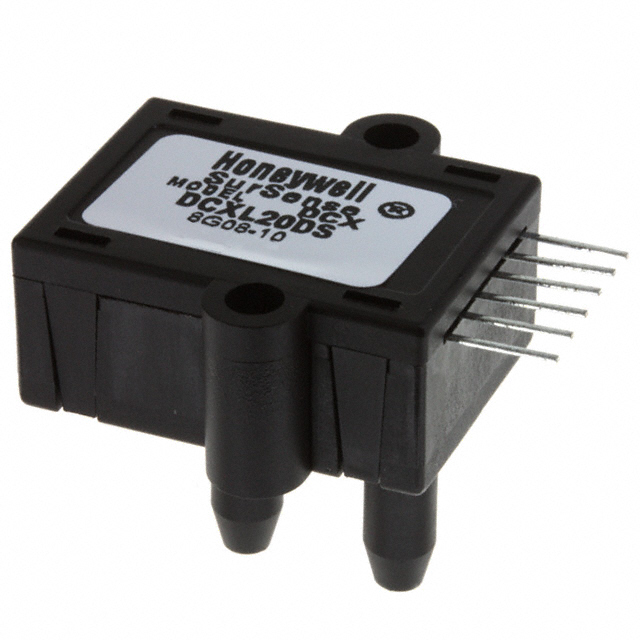

DCXL20DS
