DC002NDC4
SENSOR 0.07PSID 0.19"" 4.25VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions DC Series DC002NDC4 is a differential pressure sensor with a nominal operating pressure of 0.07 PSI (0.5 kPa). This 4-SIP module features an analog voltage output ranging from 0.25V to 4.25V, with a ±0.25% accuracy. Designed for board mounting, the sensor utilizes through-hole termination for PC pins and accepts a 5V supply voltage. The component is equipped with temperature compensation and is packaged in a tube. Its dual, barbed port style accommodates a 0.19-inch (4.83mm) male tube. Applications for this device include industrial automation and HVAC systems. The operating temperature range is -25°C to 85°C, with a maximum pressure rating of 3.61 PSI (24.92 kPa).
Additional Information
Series: DCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | 4-SIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.25 V ~ 4.25 V |
| Operating Pressure | 0.07PSI (0.5kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Port Size | Male - 0.19"" (4.83mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 3.61PSI (24.92kPa) |
Request a Quote
Clients Also Buy

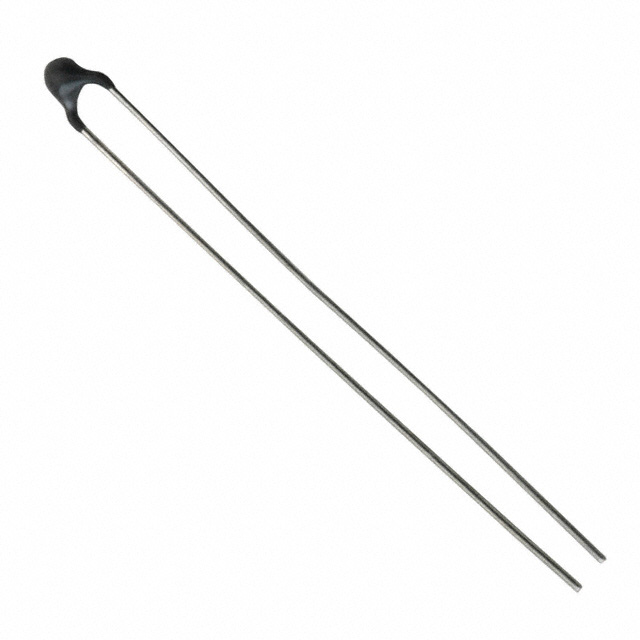

DC103G9G
