CPXL10GF
SENSOR 0.36PSIG 0.15"" .0785VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CPXL Series CPXL10GF is a 0.36 PSI (2.49 kPa) vented gauge pressure sensor. This component features a 0 mV to 78.5 mV output range referenced to a 5V supply and utilizes a Wheatstone bridge for output. Designed for board mount applications, the CPXL10GF has a 0.15" (3.8mm) barbed tube port and a 4-SIP module package. It operates within a pressure range up to 5 PSI (34.47 kPa) and an extended temperature range of -25°C to 85°C, with an accuracy of ±2%. Typical applications for this through-hole mounted sensor include industrial automation and medical devices. The voltage supply requirement is between 3V and 12V.
Additional Information
Series: CPXLRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 78.5 mV (5V) |
| Operating Pressure | 0.36PSI (2.49kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±2% |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 3V ~ 12V |
| Port Size | Male - 0.15"" (3.8mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 5PSI (34.47kPa) |
Request a Quote
Clients Also Buy

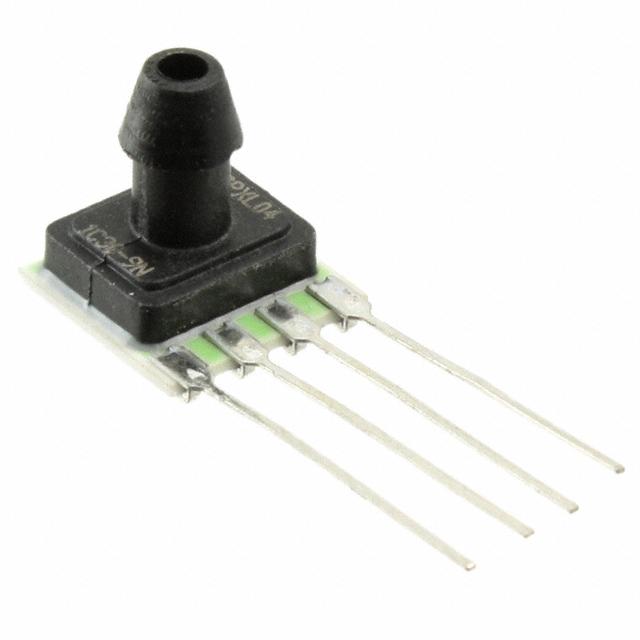

CPXL04GF
SENSOR 0.15PSIG 0.15"" .068V

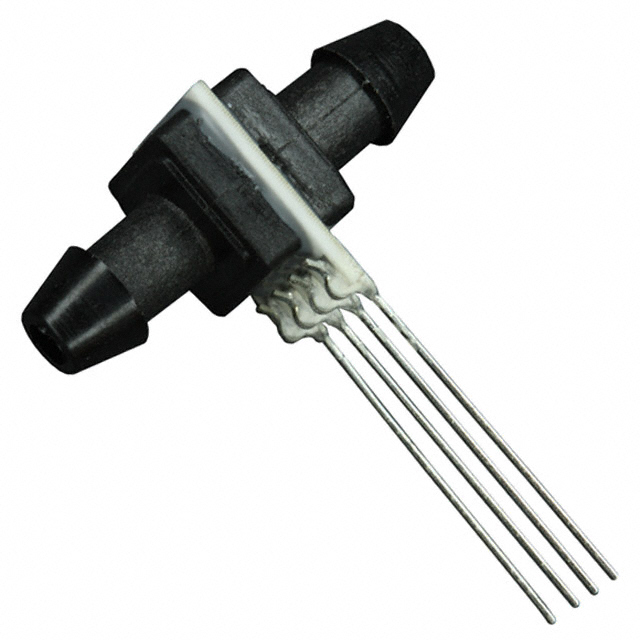

CPXL10DF
