CPX15AF
SENSOR 15PSIA 0.15"" .253VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

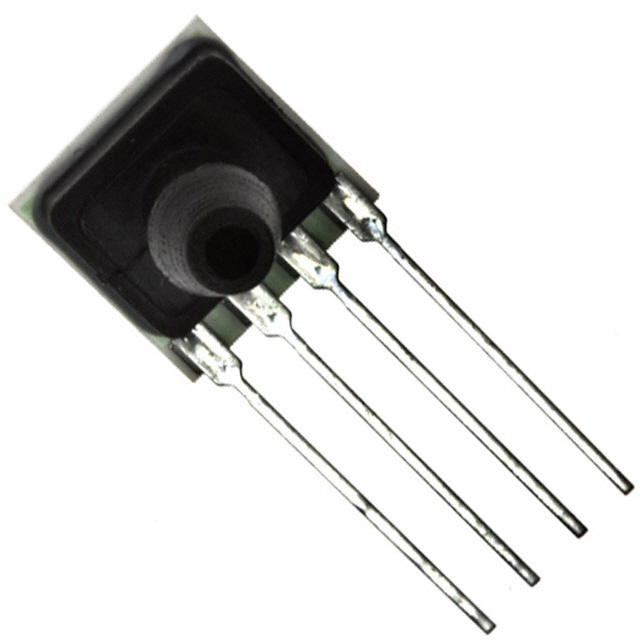

Honeywell Sensing and Productivity Solutions CPX Series CPX15AF is an absolute pressure sensor with a 15 PSI (103.42 kPa) operating pressure. This 4-SIP module features a male, barbed port with a 0.15" (3.8mm) tube connection. The output is a Wheatstone bridge providing a voltage range from 0 mV to 253 mV, with a 5V excitation. Designed for board mounting, this component offers ±2% accuracy over an operating temperature range of -25°C to 85°C. The maximum pressure rating is 45 PSI (310.26 kPa). This sensor is suitable for applications across industrial automation, medical devices, and HVAC systems. The device utilizes PC pin termination and requires a supply voltage between 3V and 12V.
Additional Information
Series: CPXRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 253 mV (5V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±2% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 12V |
| Port Size | Male - 0.15"" (3.8mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 45PSI (310.26kPa) |
