CPX100G
SENSOR 100PSIG .295VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

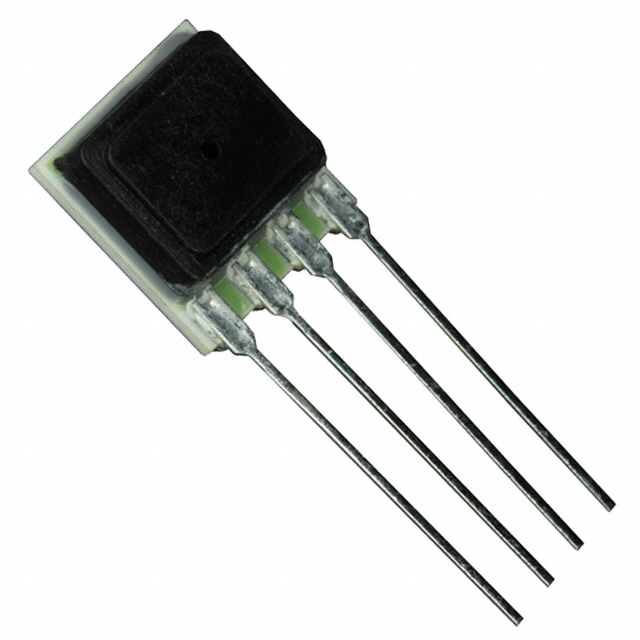

Honeywell Sensing and Productivity Solutions CPX Series CPX100G pressure sensor. This vented gauge sensor offers an operating pressure range of 0 to 100 PSI (689.48kPa), with a maximum pressure capability of 250 PSI (1723.69kPa). The output signal is a Wheatstone bridge, providing a voltage range from 0 mV to 295 mV when supplied with 5V. It features a ±2% accuracy and operates across a temperature range of -25°C to 85°C. The 4-SIP module package with PC pin termination is designed for through-hole mounting, suitable for board mount applications. This component is utilized in industrial automation and control systems.
Additional Information
Series: CPXRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 295 mV (5V) |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±2% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 12V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 250PSI (1723.69kPa) |
