CPCL04GC
SENSOR 0.15PSIG .025VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CPCL Series CPCL04GC Pressure Sensor. This vented gauge sensor accurately measures operating pressures up to 0.15 PSI (1kPa) with a ±2% accuracy. It features a 0 mV to 25 mV output range at a 12V excitation, utilizing a Wheatstone bridge configuration. Designed for through-hole mounting, this 4-SIP module is temperature compensated and suitable for board mount applications. The operating temperature range is -25°C to 85°C, with a supply voltage capability from 3V to 16V. This component finds application in various industrial control and monitoring systems.
Additional Information
Series: CPCLRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 25 mV (12V) |
| Operating Pressure | 0.15PSI (1kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±2% |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 3V ~ 16V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 3PSI (20.68kPa) |
Request a Quote
Clients Also Buy
CPCL04DFC
SENSOR 0.15PSID 0.16"" .025V

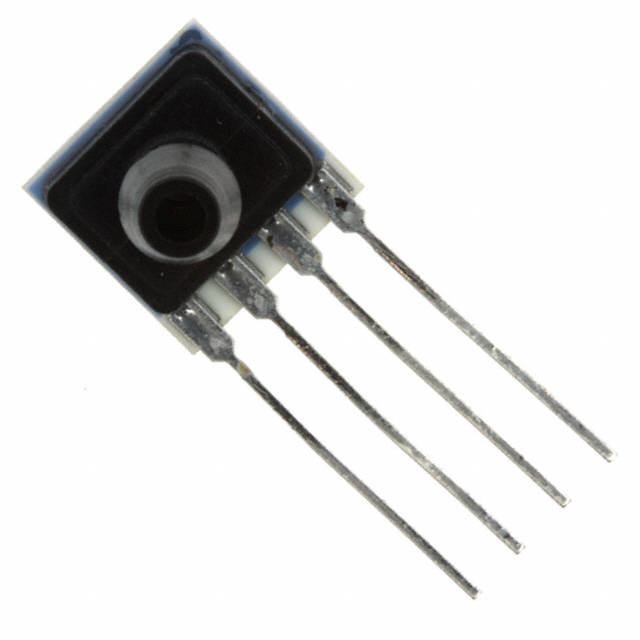

CPCL04GFC
SENSOR 0.15PSIG 0.15"" .025V

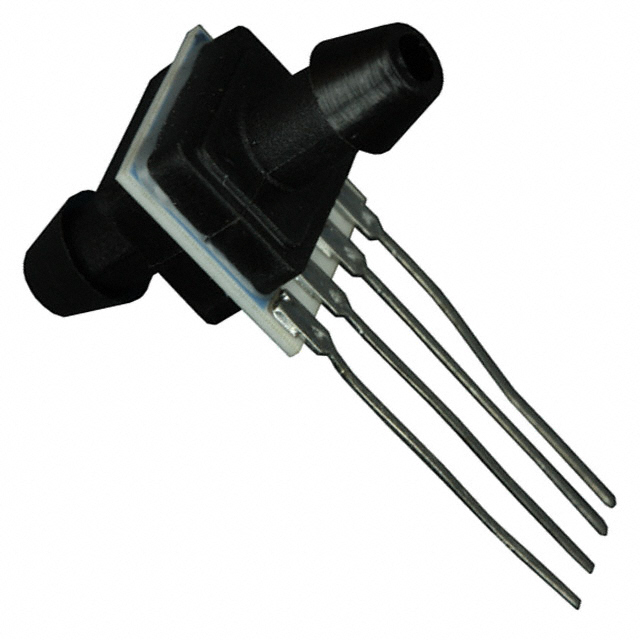

CPCL10DFC
