CPC15AH
SENSOR 15PSIA .09VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

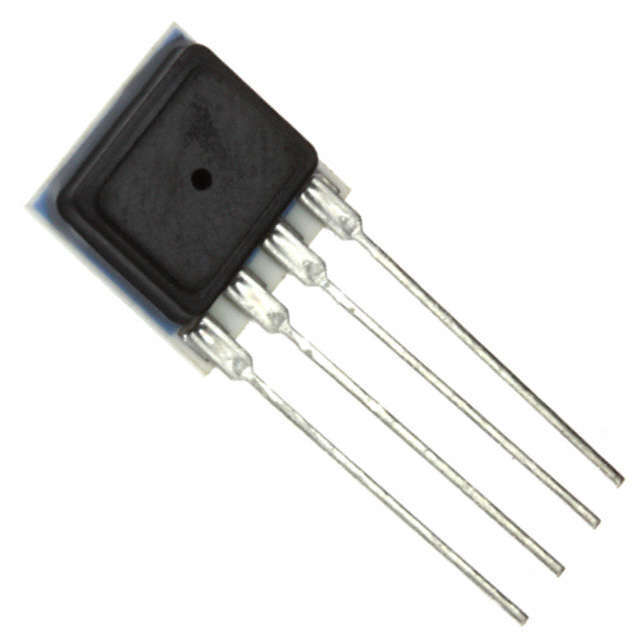

Honeywell Sensing and Productivity Solutions CPC series absolute pressure sensor, part number CPC15AH. This 4-SIP module features a 15 PSIa (103.42 kPa) operating pressure range with a maximum pressure rating of 45 PSIa (310.26 kPa). The output, from a Wheatstone bridge configuration, spans 0 mV to 90 mV with a 12V excitation. Designed for board mounting applications, this temperature-compensated component offers an accuracy of ±2%. It operates within a voltage supply range of 3V to 16V and an ambient temperature range of -25°C to 85°C. The CPC15AH is suitable for applications requiring precise absolute pressure monitoring in industries such as aerospace, industrial automation, and medical equipment. Termination is via PC pins.
Additional Information
Series: CPCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 90 mV (12V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±2% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 16V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 45PSI (310.26kPa) |
