CPC15AC
SENSOR 15PSIA .09VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

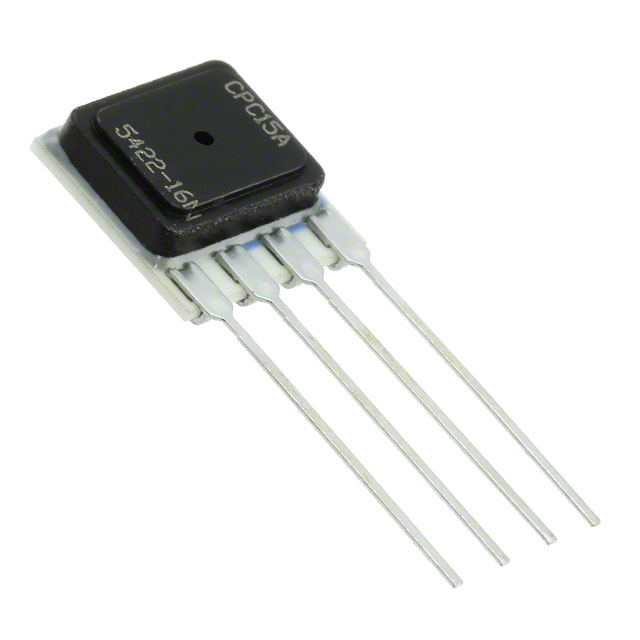

Honeywell Sensing and Productivity Solutions CPC series absolute pressure sensor, part number CPC15AC. This 4-SIP module offers an operating pressure range of 15 PSI (103.42 kPa) with a maximum pressure rating of 45 PSI (310.26 kPa). The sensor provides a linear output from 0 mV to 90 mV across a supply voltage of 3V to 16V, utilizing a Wheatstone bridge configuration. Featuring temperature compensation and ±2% accuracy, the CPC15AC is designed for board mount applications. Its through-hole mounting type and 4-SIP module package are suitable for industrial and automotive systems requiring precise absolute pressure measurement. Operating temperature range is -25°C to 85°C.
Additional Information
Series: CPCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 90 mV (12V) |
| Operating Pressure | 15PSI (103.42kPa) |
| Pressure Type | Absolute |
| Accuracy | ±2% |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 3V ~ 16V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | No Port |
| Maximum Pressure | 45PSI (310.26kPa) |
