CPC05GFC
SENSOR 5PSIG 0.15"" .06VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

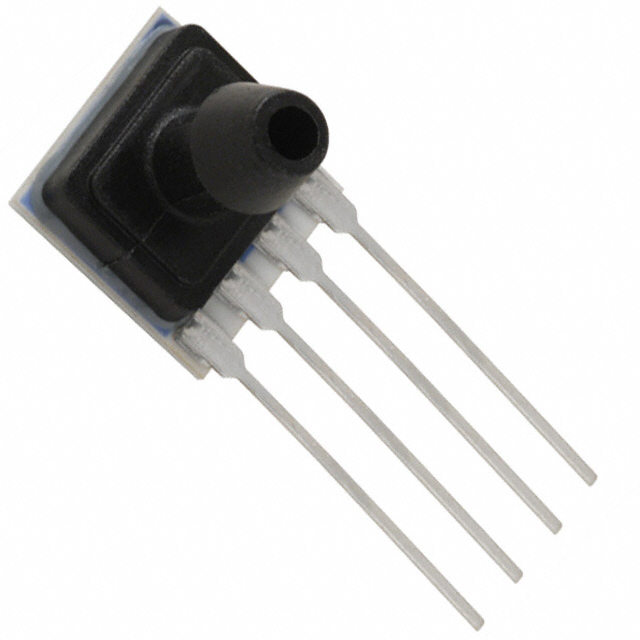

Honeywell Sensing and Productivity Solutions CPC05GFC is a vented gauge pressure sensor from the CPC series, designed for board-mount applications. This component features a 4-SIP module package with PC pin termination and a male barbed port for a 0.15" (3.8mm) tube. The sensor operates within a pressure range of 0 to 5 PSI (34.47kPa), with a maximum pressure rating of 15 PSI (103.42kPa). It provides a Wheatstone bridge output ranging from 0 mV to 60 mV, supplied by a voltage between 3V and 16V, and is temperature compensated. The operating temperature range is -25°C to 85°C, with an accuracy of ±2%. This sensor is utilized in industrial control and automation systems.
Additional Information
Series: CPCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 60 mV (12V) |
| Operating Pressure | 5PSI (34.47kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±2% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.15"" (3.8mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 15PSI (103.42kPa) |
