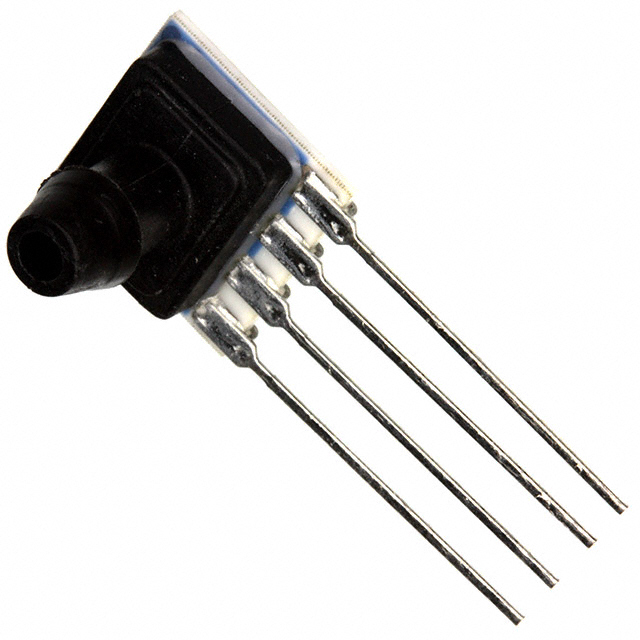

CPC01GFC
SENSOR 1PSIG 0.15"" .018VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Honeywell Sensing and Productivity Solutions CPC Series CPC01GFC is a vented gauge pressure sensor designed for precise measurement in demanding applications. This 4-SIP module offers an operating pressure range of 1 PSI (6.89 kPa) with a maximum pressure capability of 5 PSI (34.47 kPa). The sensor features a 0.15" (3.8mm) barbed male tube port and a ±2% accuracy rating. Its output is a Wheatstone bridge providing 0 mV to 18 mV across a 3V to 16V supply voltage, with optimal performance typically achieved at 12V. Temperature compensation is integrated, ensuring reliable operation across an operating temperature range of -25°C to 85°C. This board mountable component is commonly utilized in industrial automation, medical devices, and HVAC systems.
Additional Information
Series: CPCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 18 mV (12V) |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | ±2% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.15"" (3.8mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 5PSI (34.47kPa) |
