CPC01DFC
SENSOR 1PSID 0.16"" .018VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

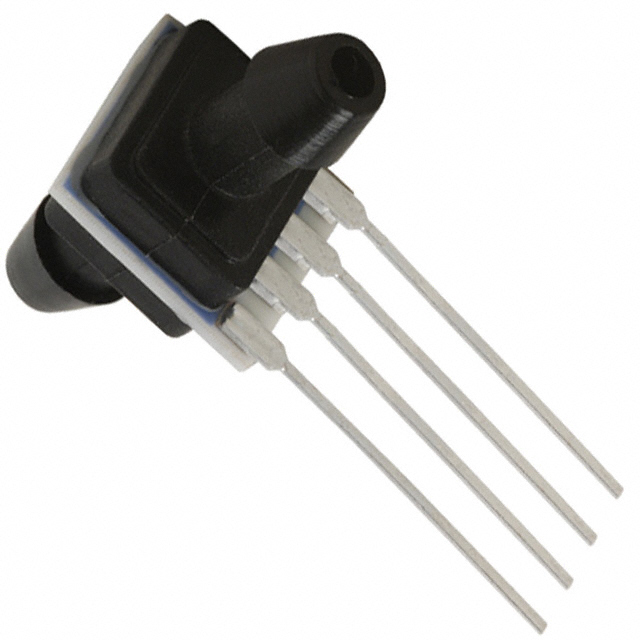

Honeywell Sensing and Productivity Solutions CPC Series differential pressure sensor, part number CPC01DFC, offers precise pressure measurement for demanding applications. This 4-SIP module operates with a supply voltage range of 3V to 16V. It features a 0 mV to 18 mV output across a 12V excitation, utilizing a Wheatstone bridge configuration for its output signal. The sensor is designed for a 1 PSI (6.89kPa) differential operating pressure, with a maximum pressure rating of 5 PSI (34.47kPa). The dual port connection utilizes 0.16" (4.06mm) barbed tube fittings. This temperature-compensated sensor exhibits ±2% accuracy and is suitable for board mount applications, commonly found in industrial automation and HVAC systems.
Additional Information
Series: CPCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | 4-SIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 18 mV (12V) |
| Operating Pressure | 1PSI (6.89kPa) |
| Pressure Type | Differential |
| Accuracy | ±2% |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 3V ~ 16V |
| Port Size | Male - 0.16"" (4.06mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 5PSI (34.47kPa) |
