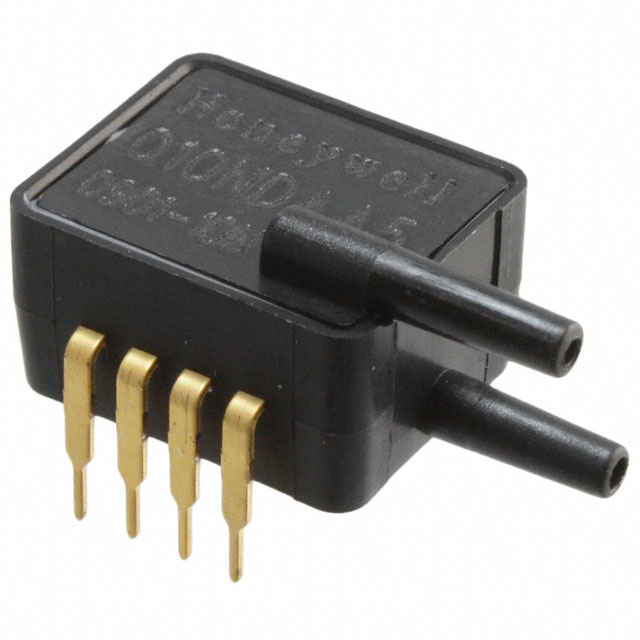

ASDXRRX010NDAA5
SENSOR 0.36PSID 0.09"" 4.5VManufacturer: Honeywell Sensing and Productivity Solutions
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
The Honeywell Sensing and Productivity Solutions ASDX series differential pressure sensor, part number ASDXRRX010NDAA5, offers precise measurement capabilities for demanding applications. This electronic component features an operating pressure range of ±0.36 PSI (±2.49 kPa) with a high accuracy of ±2%. The sensor provides an analog voltage output from 0.5 V to 4.5 V, driven by a supply voltage of 4.75 V to 5.25 V. Its 8-DIP module package with through-hole mounting facilitates board-level integration. Designed for differential pressure measurement, it includes dual male ports with a 0.09" (2.31mm) tube connection. Temperature compensation ensures reliable performance across an operating temperature range of -20°C to 105°C. This component is utilized in applications such as HVAC systems, industrial automation, and medical devices where accurate pressure monitoring is critical.
Additional Information
Series: ASDXRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Bulk |
| Package / Case | 8-DIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.5 V ~ 4.5 V |
| Operating Pressure | ±0.36PSI (±2.49kPa) |
| Pressure Type | Differential |
| Accuracy | ±2% |
| Operating Temperature | -20°C ~ 105°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.09"" (2.31mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | ±0.72PSI (±4.96kPa) |
